Product specifications
| Decode Capability | 1D, 2D |
| Connectivity | Corded |
| Dimension | 101×68×145mm |
| Weight | 173g |
| Sealing | IP42 |
| Interface | USB, RS-232 |

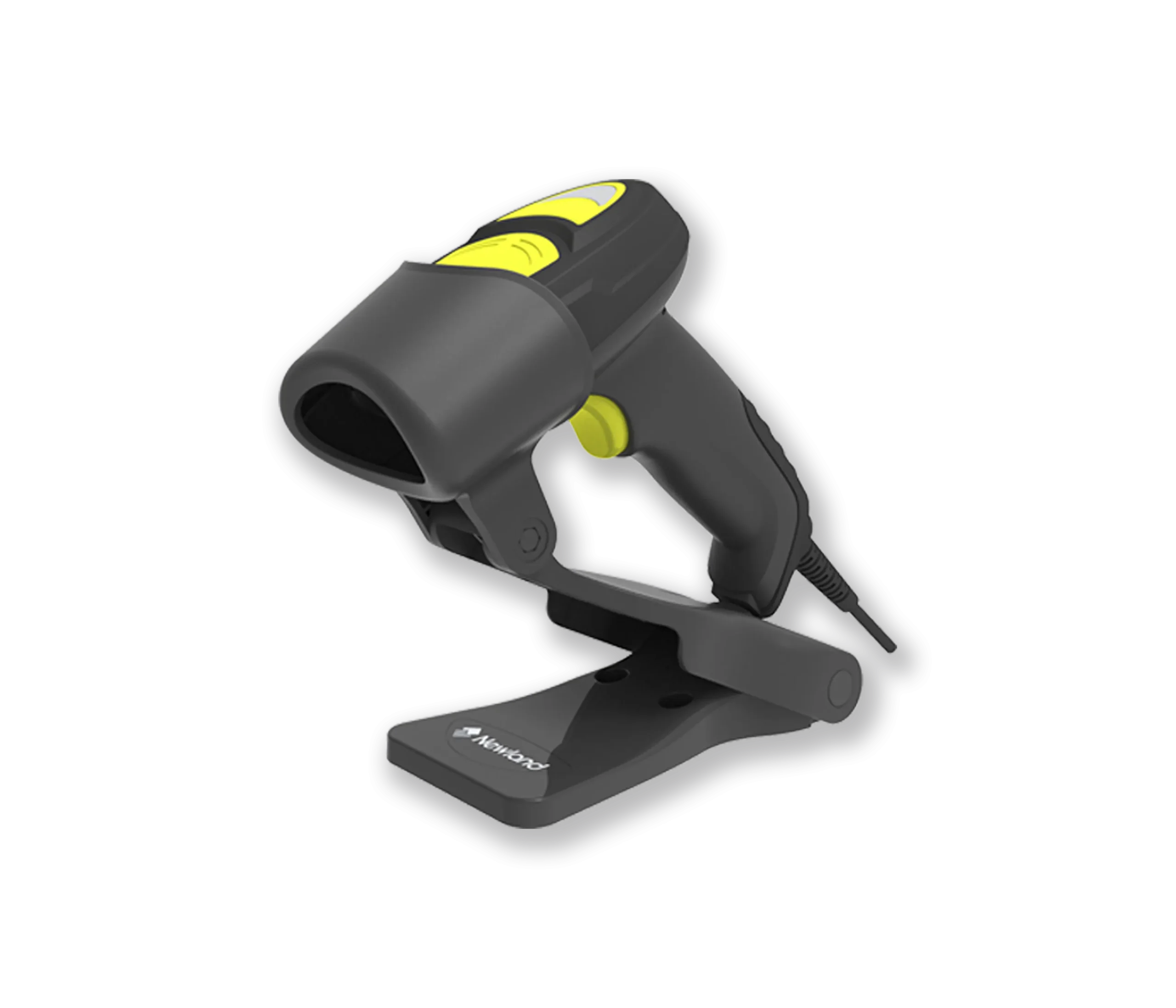

HR42 Industrial Scanner
Roll over image to zoom in
Features
Extensive Data Capture Capabilities
In addition to excelling at scanning high-density barcodes, the NLS-HR42 also provides the added value of postal barcode decoding – extending its data capture capabilities.
IR Sensor
The IR sensor inside the scanner exhibits an improved sensibility in activating the scanner to scan barcodes even when they are presented 40cm in front of it, markedly increasing throughput and productivity.
Powerful Data Editing Capability
The scanner allows customizing scanned data with ease and provides supporting software to address diverse application needs.
Ultra-rugged Construction
The NLS-HR42, built into an IP42-sealed and drop resistant (1.8m) housing, can stand up to tough environments.
User-friendly Illumination & Aiming
Designed with the end-user in mind, the NLS-HR42 employs a highly visible laser aimer to achieve crisp and accurate targeting while using flicker-free white soft illumination to reduce eye strain and fatigue from the long-time operation.
Specifications
|
Performance
|
Image Sensor | 1280 × 960 CMOS | |
| Illumination | White LED | ||
| Symbologies | 2D: PDF417, QR Code, Data Matrix, Aztec, etc. 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 25, Standard 25, Matrix 25, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey, etc. Postal: USPS Postnet, Royal Mail, KIX Post, Australian Postal, etc. |
||
| Resolution | ≥3mil | ||
| Typical Depth of Field | EAN-13: 25mm-155mm (13mil) Code 39: 50mm-100mm (5mil) PDF 417: 40mm-105mm (6.7mil) Data Matrix: 40mm-110mm (10mil) QR Code: 35mm-155mm (15mil) |
||
| Motion Tolerance | 2m/s | ||
| Scan Angle | Pitch: ±50°, Roll: 360°, Skew: ±50° | ||
| Field of View | Horizontal 40.5°, Vertical 30.4° | ||
| Min Symbol Contrast | 25% | ||
|
Physical
|
Dimensions (L×W×H) | 74×115×161mm | |
| Weight | 173g | ||
| Notification | Beep, LED indicator, vibration | ||
| Rated Power Consumption | 1251mW (typical) | ||
| Operating Voltage | 5VDC±5% | ||
| Current@5VDC | Operating: 266mA (typical), 344mA (max.) Standby: 109mA |
||
|
Environmental
|
Operating Temperature | -20°C to 50°C (-4°F to 122°F) | |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) | ||
| Humidity | 5% to 95% (non-condensing) | ||
| ESD | ±16 KV (air discharge); ±8 KV (direct discharge) | ||
| Drop | 1.8m | ||
| Sealing | IP42 | ||
|
Certifications
|
Certificates & Protection | FCC Part15 Class B, CE EMC Class B. RoHS | |
