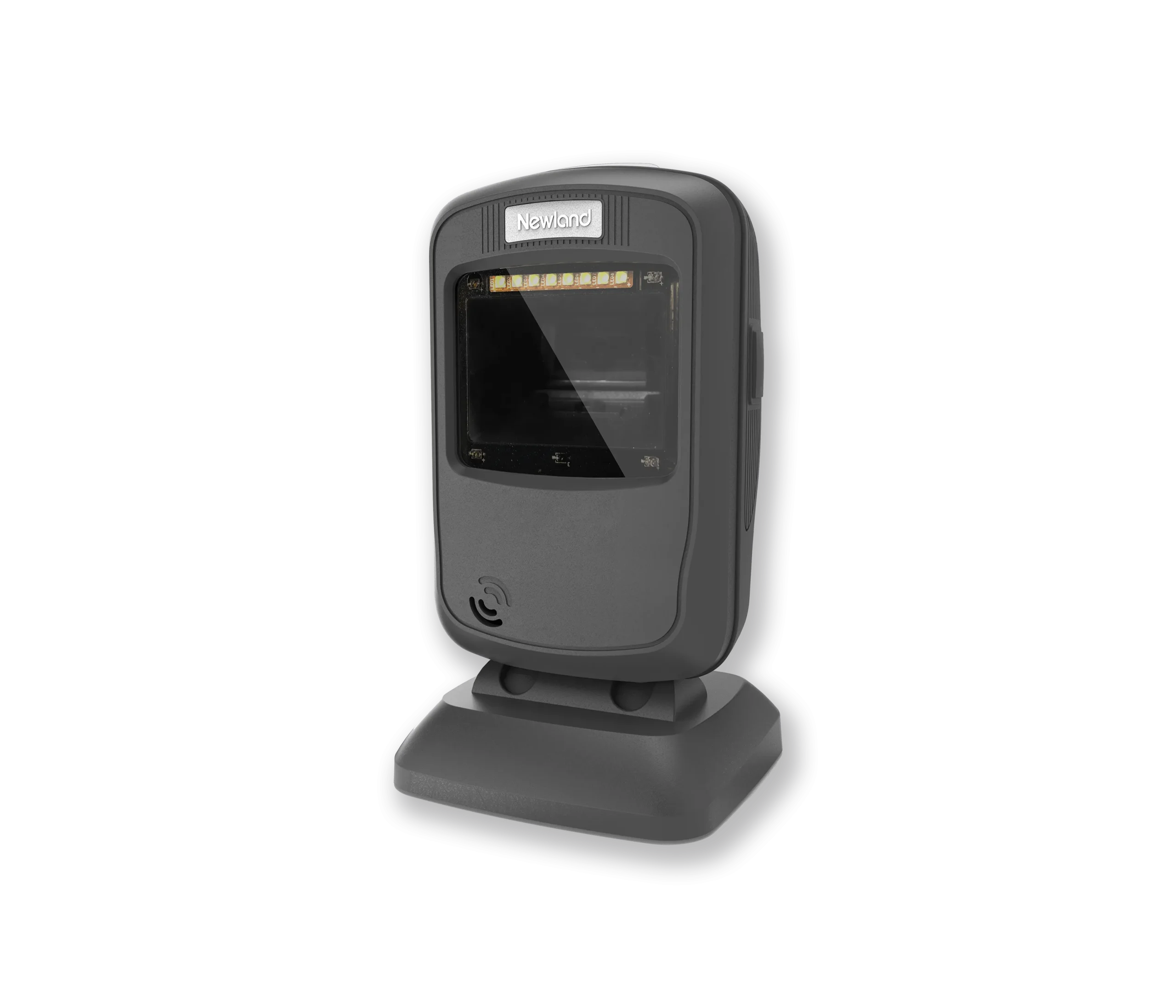

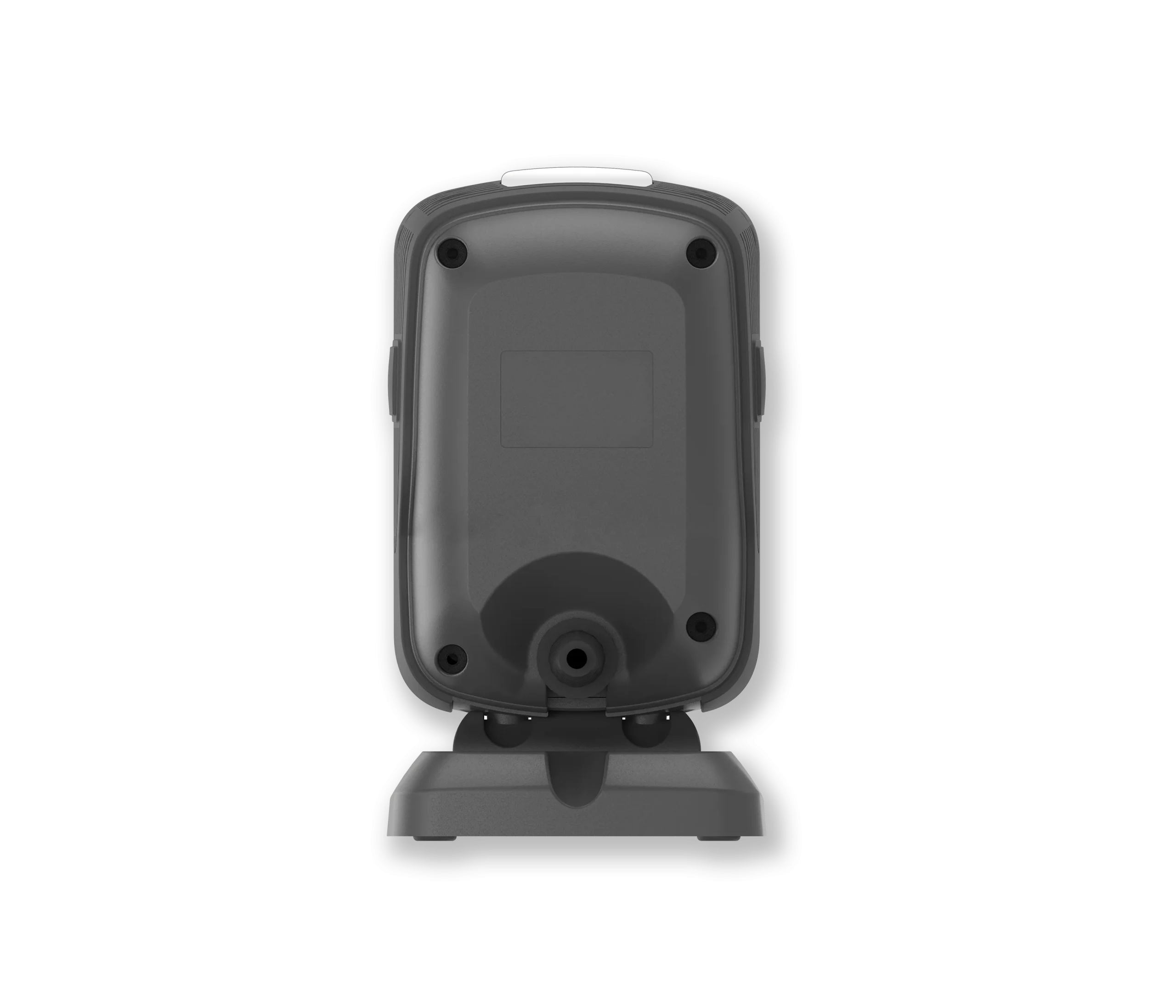

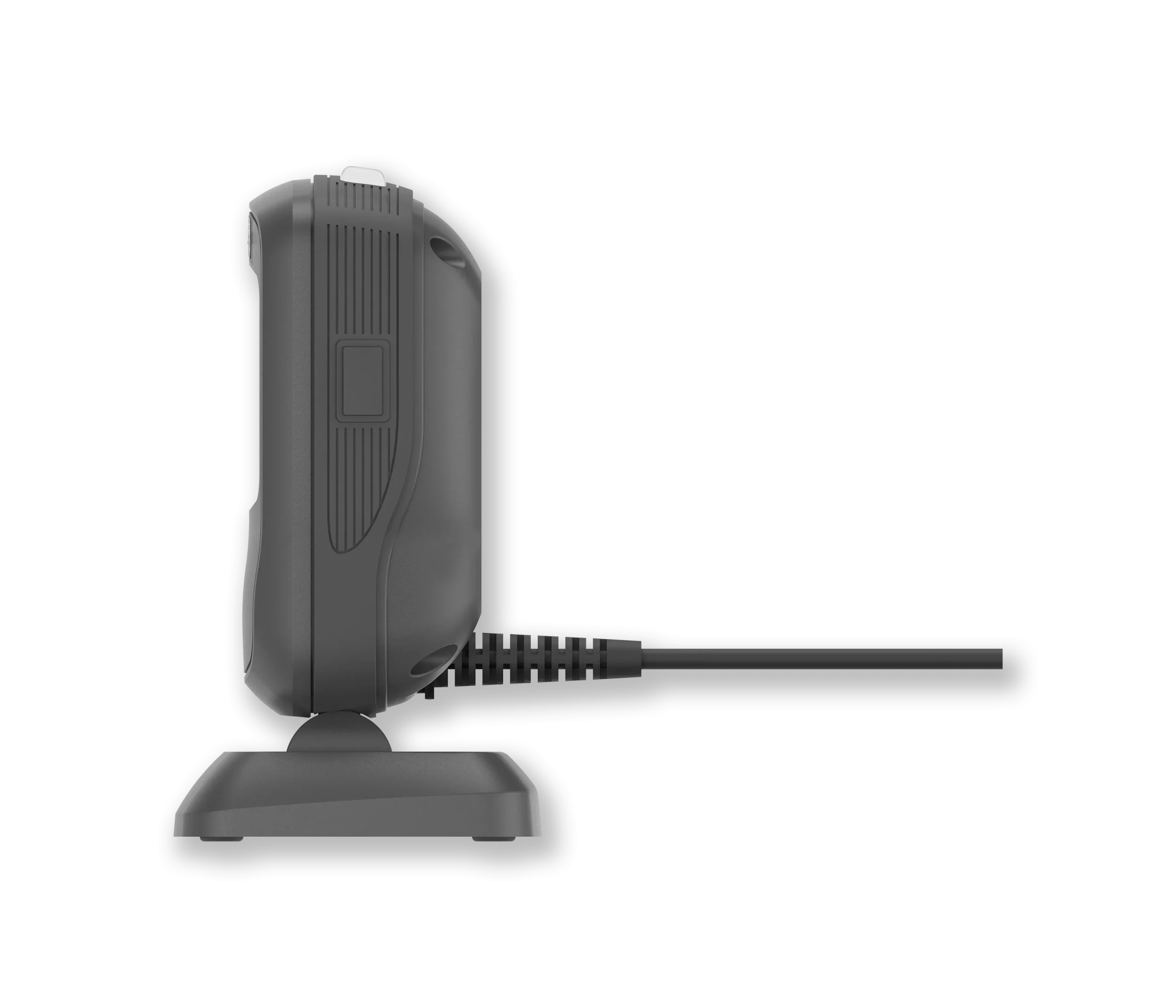

FR4080 Desktop Scanner

Roll over image to zoom in
Click to open expanded view

Product specifications

Decode Capability 1D, 2D
Connectivity Corded
Dimension 83×81×148mm
Weight 293g
Sealing IP52
Interface USB, RS-232
Category:

1.2m Drop Resistance

The scanner withstands multiple 1.2m drops to concrete (for six sides, one drop per side).

IP52-rated Sealing

An IP52-rated seal protects the scanner against the ingress of dust, water and other contaminants

IR Trigger

The IR sensor in the scanner enables speedy capture of barcodes presented to it, markedly increasing throughput and productivity.

Quick to Switch Mode

The Switch at the top of the scanner allows users to swiftly toggle between the Normal mode and High Motion Tolerance mode.

Snappy On-screen Barcode Capture

Armed with Newland’s sixth-generation of UIMG® technology, this CPU-based scanner is capable of reading 1D as well as high-volume 2D barcodes on a screen covered with protective film.

Superior Motion Tolerance

Exceptional motion tolerance (2.5m/s) and large FOV (horizontal 51°, vertical 32°) enhance user experience.

Specifications

Performance
 Image Sensor 1280×800 CMOS
Illumination White LED
Symbologies 2D: PDF417, Data Matrix, QR Code, Micro QR Code, Aztec, etc.
1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 25, Standard 25, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey, etc.
Resolution ≥3mil
Typical Depth of Field EAN-13: 10-210mm (13mil)
QR Code: 10-180mm (15mil)
Scan Angle Pitch: ±50°, Roll: 360°, Skew: ±45°
Min. Symbol Contrast 25%
Motion Tolerance 2.5m/s
Field of View Horizontal 51°, Vertical 32°



Physical
 Dimensions (L×W×H) 83(W)×81(D)×148(H)mm
Weight 293g
Notification Beep, LED
Operating Voltage 5VDC±5%
Current@5VDC Operating: 219mA (typical)
Interfaces RS-232, USB
Rated Power Consumption 1041mW (typical)



Environmental
 Operating Temperature -20°C to 60°C (-4°F to 140°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 5%~95% (non-condensing)
ESD ±14 KV (air discharge); ±8 KV (direct discharge)
Drop 1.2m drops to concrete (for six sides, one drop per side)
Sealing IP52



Certifications
 Certificates & Protection FCC Part15 Class B, CE EMC Class B, RoHS



Resources

Specification Sheets
NLS-FR4080_Datasheet_en_global
Manual & Technical Literature
NLS-FR4080_User_Guide
