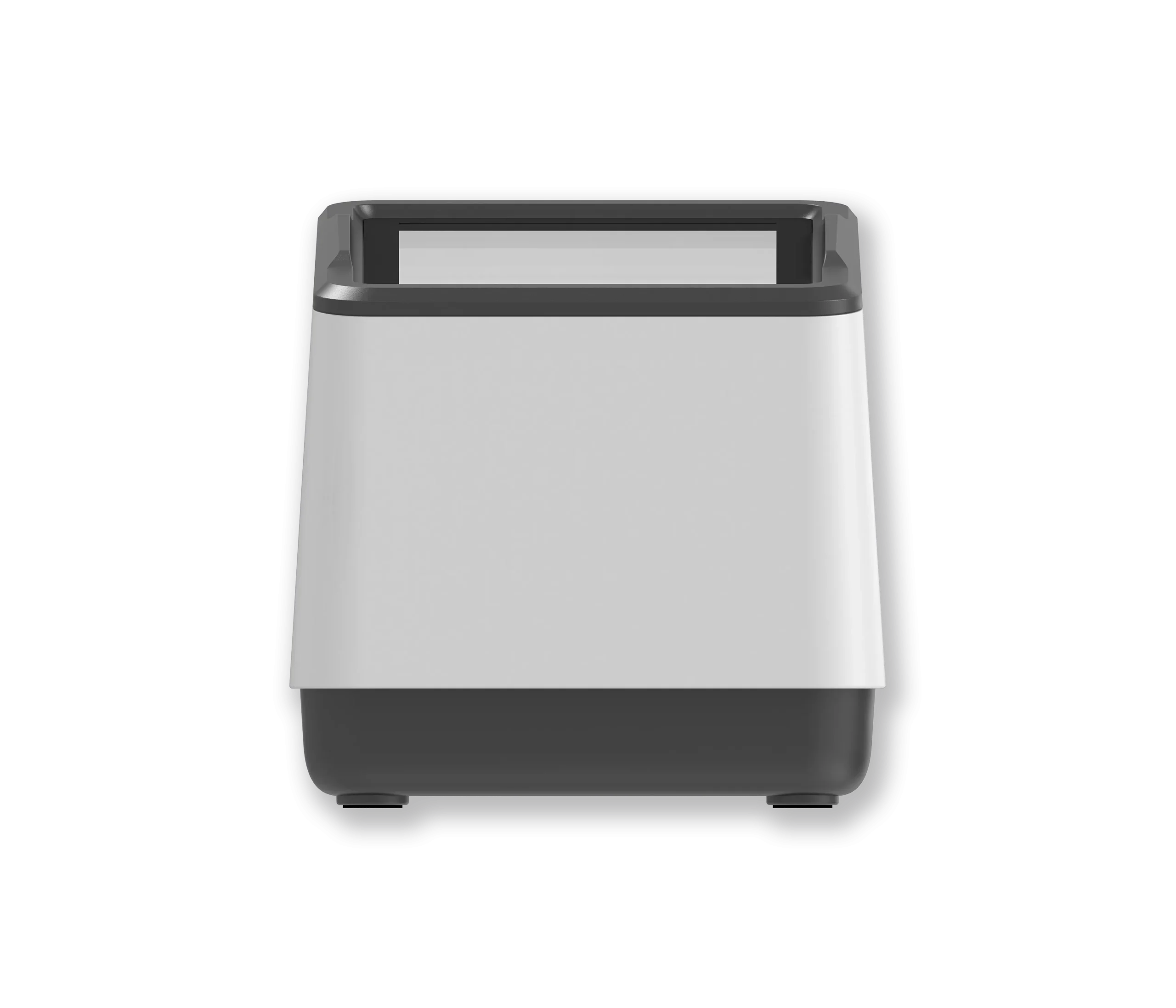

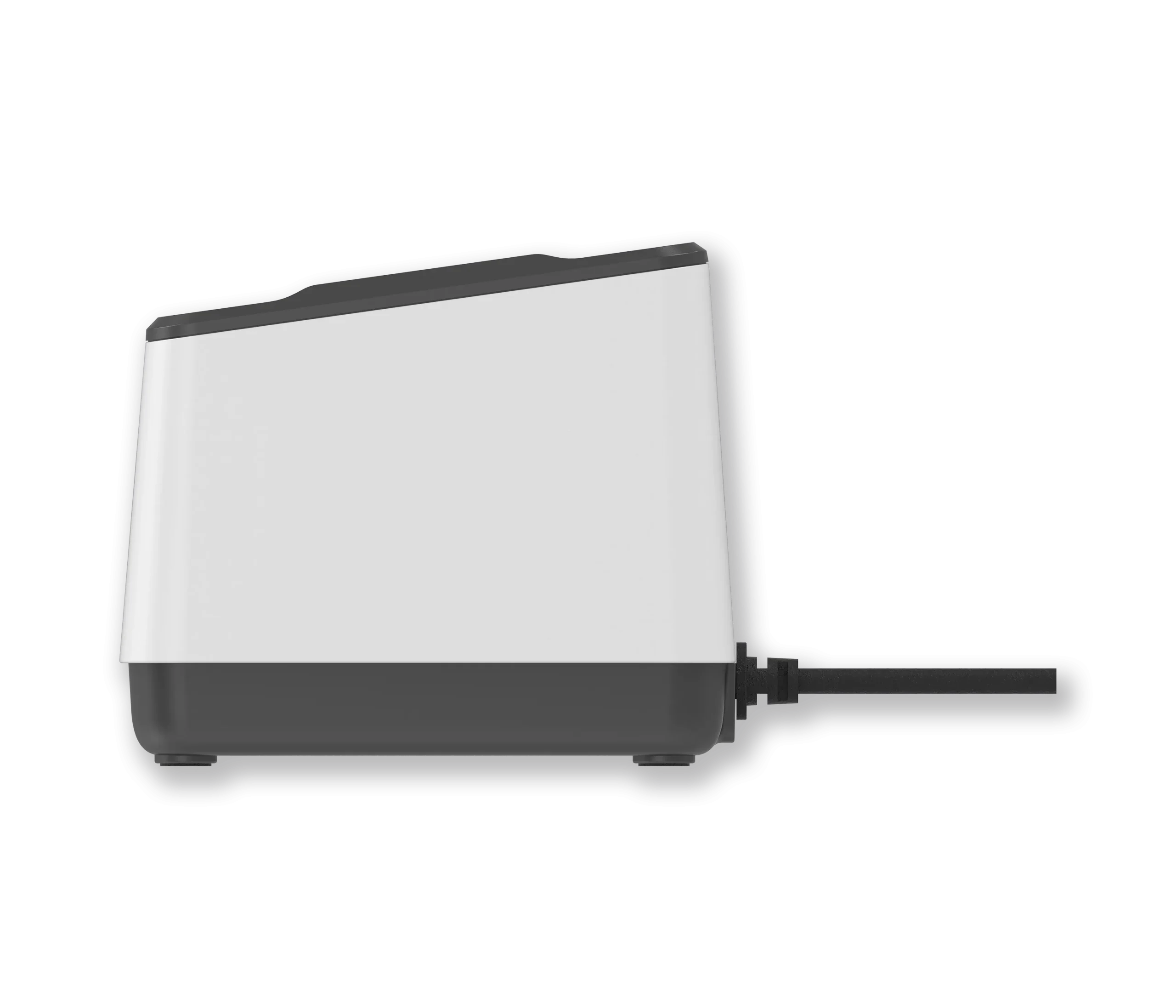

FR2080 Desktop Scanner

Roll over image to zoom in
Click to open expanded view

Product specifications

Dimension 158×59×18.3mm
Weight 170g
Sealing
Network Connection WLAN, WWAN, WPAN
Operating System Android
Screen Size 2.8”
Category:

Diffuse Illumination

FR2080 offers a diffuse and extremely even illumination which closely resembles natural light to make it possible for rapid capture of barcodes on a screen at low brightness levels.

Improved Sensitivity

FR2080 is able to speedily “sense” and decode barcodes that are presented to it, markedly increasing throughput and productivity.

LED Indicator & Buzzer

FR2080 uses both audible and visible indicators to notify users when it decodes a barcode, ensuring that users can easily keep track of scanner feedback and properly complete scans, saving valuable worker time.

Large Scan Window

FR2080 provides a large scan window to further enhance the user experience.

Snappy On-screen Barcode Capture

Armed with Newland’s fifth generation of UIMG® technology, FR2080 can decode 1D and 2D barcodes accurately and rapidly and is incredibly reader-friendly on smartphone & tablet displays.

Specifications

Performance
 Image Sensor 640 * 480 CMOS
Illumination White LED
Symbologies 2D: PDF417, Data Matrix, QR Code, Micro QR Code, Aztec
1D: EAN-8, EAN-13, UPC-A, UPC-E, ISSN, ISBN, Codabar, Standard 2 of 5, Code 128, Code93, ITF-6, ITF-14, GS1 Databar, MSI-Plessey, Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 11, Plessey, etc.
Resolution >5mil
Scan Angle Pitch: ±50°, Roll: 360°, Skew: ±45°
Min. Symbol Contrast 30%
Scan Window 82mm×64mm
Screen Brightness ≥15%
Field of View Horizontal 69.5°, Vertical 54.8°



Physical
 Dimensions (L×W×H) 100.3(W)×120.3(D)×102.8(H)mm
Weight 296g
Notification Beep, LED indicator
Operating Voltage 5VDC±5%
Current@5VDC Operating: 118.4mA (typical), 174.5mA (max.)
Interfaces USB
Rated Power Consumption 837.3mW



Environmental
 Operating Temperature -20°C to 60°C (-4°F to 140°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 5%~95% (non-condensing)
ESD ±8 KV (air discharge); ±4 KV (direct discharge)



Certifications
 Certificates & Protection FCC Part15 Class B, CE EMC Class B, RoHS

Resources

Specification Sheets
NLS-FR2080_Datasheet_en_global
Manual & Technical Literature
NLS-FR2080_User_Guide
