570-series

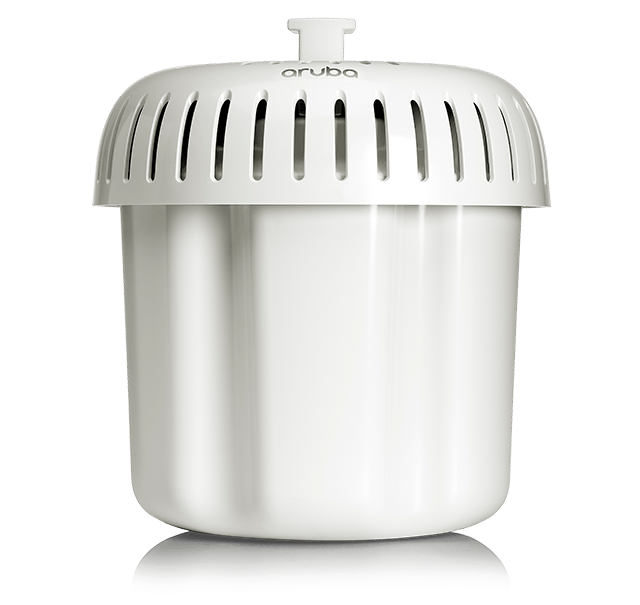

HPE Aruba Networking 570 Series Outdoor Access Points

High-performance Wi-Fi 6 ideal for harsh outdoor weather conditions such as parking lots, stadiums, and public venues.

High performance, in any weather

Ensures predictable, secure, and optimized connectivity with 2.69 Gbps maximum speed and Wi-Fi 6 support for large, outdoor, harsh weather events and environments.

IoT-ready Bluetooth 5 and 802.15.4/Zigbee

Simplifies deploying and managing IoT location services, asset-tracking services, security solutions, and IoT sensors.

Dynamic Segmentation and policy enforcement-firewalls

Enforces (automatically) consistent policies across all networks, keeping users and devices secure.

AI-powered Wi-Fi RF management and automation with AirMatch

Utilizing AI learning, Air Match provides automated RF optimization and looks at analytics across the entire network.

Air Slice for SLA-grade performance

Guarantees a predictable user experience, prioritizing traffic and arrival of time-sensitive data with Air Slice application.

Maximum density. Highest performance.

Withstands harsh outdoor weather conditions, providing fast speed, high density, and reliable connectivity outdoors in large open areas, such as stadiums and parking lots.

High efficiency

Built for Wi-Fi 6 standards and high-density outdoor connectivity, the 570 Series APs maximize performance and efficiency. Supports OFDMA and MU-MIMO multiuser technologies, enabling the most efficient communication between the client and AP.

IoT platform and location-ready

Supports 802.15.4/Zigbee and Bluetooth to simplify the deployment and management of IoT location-based services, asset-tracking services, security solutions, and IoT sensors. Target Wake Time (TWT) improves client power savings and reduces airtime contention with other clients.

Simple and secure access

Enforces built-in policy firewall (layer 7) for each new client on the network and utilizes HPE Aruba Networking ClearPass Policy Manager for centralized policy management. For enhanced security, the 570 Series APs provide storage of credentials, keys, and booting

Additional information

Performance Density

Very High

Number of radios

1, 2

Specifications

Hardware Variants
AP-574

    • 5 GHz: Four Nf connectors for external antenna operation
    • 2.4 GHz: Two Nf connectors for external antenna operation
    • BLE/Zigbee: Integrated omnidirectional antenna and peak gain of 4.2dBi

AP-575

    • Built in Omni Directional Antennas
    • 5 GHz: Antennas 5 dBi
    • 2.4 GHz: Antennas 3.4 dBi
    • BLE/Zigbee: Integrated omnidirectional antenna and the peak gain of 6dBi

AP-577

    • Built in 90°H x 90°V Directional Antennas
    • 5 GHz: Antennas 5.6 dBi
    • 2.4 GHz: Antennas 6.8 dBi
    • BLE/Zigbee: Integrated omnidirectional antennas with peak gain of 8.4dBi



Wi-Fi Radio Specifications
AP type:

    • Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 4×4 MIMO and 2.4 GHz 2×2 MIMO

Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)

5GHz:

    • Four spatial stream Single User (SU) MIMO for up to 4.8 Gbps wireless data rate to individual 4SS HE160 Wi-Fi 6 client device (max)
    • Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate to individual 2SS HE80 Wi-Fi 6 client device (typical)
    • Four spatial stream Multi User (MU) MIMO for up to 4.8 Gbps wireless data rate to up to four 1SS or two 2SS HE160 Wi-Fi 6 DL-MU-MIMO capable client devices simultaneously (max)
    • Four spatial stream Multi User (MU) MIMO for up to 2.4 Gbps wireless data rate to up to four 1SS or two 2SS HE80 Wi-Fi 6 DL-MU-MIMO capable client devices simultaneously (typical)

2.4GHz:

    • Two spatial stream Single User (SU) MIMO for up to 575 Mbps wireless data rate to individual 2SS HE40 Wi-Fi 6 client device (max)
    • Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 Wi-Fi 6 client device (typical)
    • Support for up to 512 associated client devices per radio, and up to 16 BSSIDs per radio
    • Supported frequency bands (country-specific restrictions apply):
      • 2.400 to 2.4835 GHz (ISM)
      • 5.150 to 5.250 GHz (U-NII-1)
      • 5.250 to 5.350 GHz (U-NII-2A)
      • 5.470 to 5.725 GHz (U-NII-2C)
      • 5.725 to 5.850 GHz (U-NII-3/ISM)
      • 5.850 to 5.875 GHz (U-NII-4)
    • Available channels: Dependent on configured regulatory domain
    • Dynamic frequency selection (DFS) optimizes the use of available RF spectrum.
    • Supported radio technologies:
      • 802.11b: Direct-sequence spread-spectrum (DSSS)
      • 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
      • 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 16 resource units (RU)
    • Supported modulation types:
      • 802.11b: BPSK, QPSK, CCK
      • 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension)
      • 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM,1024-QAM (proprietary extension)
      • 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
    • 802.11n high-throughput (HT) support: HT 20/40
    • 802.11ac very high throughput (VHT) support: VHT 20/40/80/160
    • 802.11ax high efficiency (HE) support: HE20/40/80/160
    • Supported data rates (Mbps):
      • 802.11b: 1, 2, 5.5, 11
      • 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
      • 802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)
      • 802.11n (5GHz): 6.5 to 600 (MCS0 to MCS31, HT20 to HT40)
      • 802.11ac: (5 GHz): 6.5 to 3,467 (MCS0 to MCS9, NSS = 1 to 4 for VHT20 to VHT160)
      • 802.11ax (2.4GHz): 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
      • 802.11ax (5GHz): 8.6 to 4803 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160)
    • 802.11n/ac packet aggregation: A-MPDU, A-MSDU
    • Transmit power: Configurable in increments of 0.5 dBm
    • Maximum (conducted) transmit power (limited by local regulatory requirements):
      • 2.4 GHz band: +22 dBm per chain , +25dBm aggregate (2×2)
      • 5 GHz band: +22 dBm per chain , +28dBm aggregate (4×4)
      • Note: conducted transmit power levels exclude antenna gain.
    • Maximum EIRP (limited by local regulatory requirements):
      • 2.4 GHz band:
        • AP-574: 25 + Antenna Gain + TxBF Gain
        • AP-575: 29.0 dBm EIRP
        • AP-577: 34.4 dBm EIRP
      • 5 GHz band:
        • AP-574: 28 + Antenna Gain + TxBF Gain
        • AP-575: 32.6 dBm EIRP
        • AP-577: 36 dBm EIRP
    • Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks.
    • Maximum ratio combining (MRC) for improved receiver performance.
    • Cyclic delay/shift diversity (CDD/CSD) to enable the use of multiple transmit antennas.
    • Short guard interval for 20-MHz, 40-MHz, 80-MHz and 160-MHz channels.
    • Space-time block coding (STBC) for increased range and improved reception.
    • Low-density parity check (LDPC) for high-efficiency error correction and increased throughput.
    • Transmit beam-forming (TxBF) for increased signal reliability and range.

802.11mc Fine Timing Measurement (FTM):

    • for precision distance ranging



Additional Interfaces
E0: HPE SmartRate port (RJ-45)

    • Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX
    • 2.5Gbps speed complies with NBase-T and 802.3bz specifications
    • PoE-PD: 48Vdc (nominal) 802.3at/bt (Class 4 or higher)
    • 802.3az Energy Efficient Ethernet (EEE)

E1: 10/100/1000BASE-T (RJ-45)

    • Auto-sensing link speed and MDI/MDX
    • 802.3az Energy Efficient Ethernet (EEE)
    • PoE-PD: 48Vdc (nominal) 802.3at/bt (Class 4 or higher)

Link Aggregation (LACP) support between both network ports for redundancy and increased capacity

Bluetooth 5 and 802.15.4 radio

    • 2.4 GHz
    • Bluetooth 5: up to 8dBm transmit power and -95 dBm receive sensitivity
    • Zigbee: up to 8 dBm transmit power and -97 dBm receive sensitivity
    • Up to 4 dBm transmit power (class 2) and -91 dBm receive sensitivity

Visual indicator (multi-color LED):

    • For system and radio status

Reset button:

    • Factory reset (during device power up)

USB-C console interface

Power
Maximum (worst-case) power consumption:

    • PoE powered (dual ports): 32.0W
    • PoE powered (single port, full function): 26.1W

Maximum (worst-case) power consumption in idle mode:

    • 14.0W (single PoE) or 16.0W (dual PoE)

Maximum (worst-case) power consumption in deep-sleep mode:

    • 2.9W (single PoE) or 3.9W (dual PoE)

The AP supports Power over Ethernet (PoE) on port E0 and/or E1

When PoE power is supplied to both Ethernet ports, the AP can be configured to combine or prioritize power sources

Power sources are sold separately; see the ordering information for details

When powered by 1x 802.3at (class 4) PoE and with the IPM feature disabled, the AP will disable the other Ethernet port. In the same configuration but with IPM enabled, the AP will start up in unrestricted mode, but may dynamically apply restrictions depending on the PoE budget and actual power. The feature restrictions and order can be programmed.

Operating the AP with single or dual 802.3af (class 3 or lower) PoE source is not supported.



Mounting
Optional mounting kits:

    • AP-OUT-MNT-V1A: Outdoor Pole/Wall Long Mount Kit
    • AP-270-MNT-V2: Outdoor Pole/Wall Short Mount Kit
    • AP-270-MNT-H1: Outdoor AP Hanging or Tilt Install Mount Kit
    • AP-270-MNT-H2: Outdoor Flush Wall or Ceiling Mount
    • AP-270-MNT-H3: Outdoor AP Hanging or Dual-Tilt Install Mount Kit
Mechanical
AP-574

    • Dimensions/weight (excluding mount):
      • 240mm (W) x 240mm (D) x 190mm (H) / 9.4″ (W) x 9.4″ (D) x 7.5″ (H)
      • 2.7 kg / 6.0 lbs

AP-575

    • Dimensions/weight (excluding mount):
      • 240mm (W) x 240mm (D) x 270mm (H) / 9.4″ (W) x 9.4″ (D) x 10.6″ (H)
      • 2.5 kg / 5.6 lbs

AP-577

    • Dimensions/weight (excluding mount):
      • 230mm (W) x 220mm (D) x 140mm (H) / 9.0″ (W) x 8.7″ (D) x 5.6″ (H)
      • 2.1 kg / 4.6 lbs



Environmental
Operating:

    • Temperature: -40°C to +65°C / -40°F to +149°F with full solar loading
    • Humidity: 5% to 93% non-condensing internal
    • Rated for operation in all weather conditions

Storage and transportation:

    • Temperature: -40°C to +70°C / -40°F to +158°F

Operating Altitude: 3,000 m

Water and Dust: IP66/67

Salt Tolerance: Tested to ASTM B117-07A Salt Spray 200hrs

Wind Survival: Up to 165 Mph

Shock and Vibration: ETSI 300-19-2-4



Regulatory Compliance
FCC/ISED

CE Marked

RED Directive 2014/53/EU

EMC Directive 2014/30/EU

Low Voltage Directive 2014/35/EU

UL/IEC/EN 60950

EN 60601-1-1, EN60601-1-2

Railway Certs:

    • EN 50155:2017 – Railway Applications
    • EN 50121-1:2017 – Railway EMC
    • EN 50121-3-2 – Railway EMC
    • EN 50121-4:2016 – Railway Immunity
    • IEC 61373 ed2:2008 – Railway Shock and Vibration

For more country-specific regulatory information and approvals, please see your HPE Aruba Networking representative



Regulatory Model Numbers
AP-574: APEX0574

AP-575: APEX0575

AP-577: APEX0577



Certifications
CB Scheme Safety, cTUVus

UL2043 plenum rating

Wi-Fi Alliance certified 802.11a/b/g/n/

Wi-Fi CERTIFIED™ 6 (802.11ax)

Wi-Fi CERTIFIED™ ac (with Wave 2 features)

Passpoint® (Release 2) with ArubaOS and Instant



Minimum Operating System Software Versions
ArubaOS & Aruba InstantOS 8.7.0.0

ArubaOS 10.2.0.0



Warranty
Limited lifetime warranty
