• • Remote AP platform (desk mount, wired + wireless access), integrated antennas

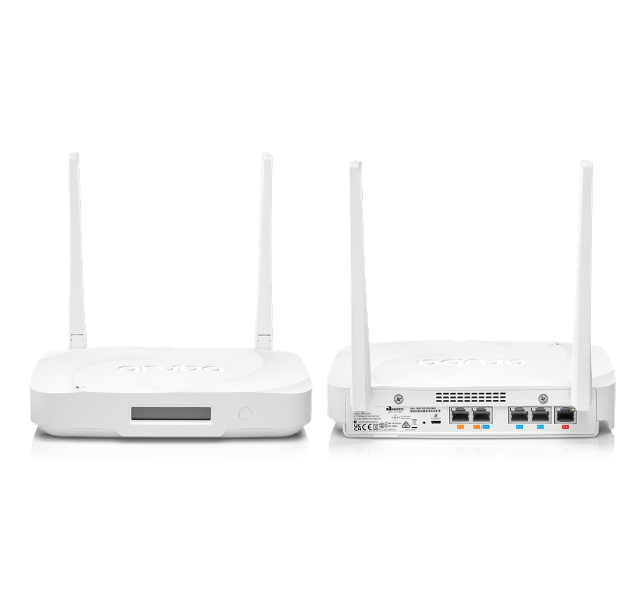

AP-605R12:

• • AP-605R with pre-installed AP-605CM12 CAT12 LTE radio module

• • Indoor, tri-radio, 2.4GHz, 5GHz and 6GHz (dual concurrent) 802.11ax 2×2 MIMO

2.4GHz radio:

• • Two spatial stream Single User (SU) MIMO for up to 574Mbps wireless data rate with 2SS HE40 802.11ax client devices (287Mbps for HE20)

5GHz radio:

• • Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with 2SS HE80 802.11ax client devices

6GHz radio:

• • Two spatial stream Single User (SU) MIMO for up to 2.4Gbps wireless data rate with 2SS HE160 802.11ax client devices

Up to 512 associated client devices per radio, and up to 16 BSSIDs per radio (limited to 4 for the 6GHz radio)

Supported frequency bands (country-specific restrictions apply):

• • 2.400 to 2.4835GHz ISM
  • 5.150 to 5.250GHz U-NII-1
  • 5.250 to 5.350GHz U-NII-2A
  • 5.470 to 5.725GHz U-NII-2C
  • 5.725 to 5.850GHz U-NII-3/ISM
  • 5.850 to 5.895GHz U-NII-4
  • 5.925 to 6.425GHz U-NII-5
  • 6.425 to 6.525GHz U-NII-6
  • 6.525 to 6.875GHz U-NII-7
  • 6.875 to 7.125GHz U-NII-8

Available bands and channels: Dependent on configured regulatory domain (country)

Dynamic frequency selection (DFS) optimizes the use of available RF spectrum in the 5GHz band

Supported radio technologies:

• • 802.11b: Direct-sequence spread-spectrum (DSSS)
  • 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
  • 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 8 resource units

Supported modulation types:

• • 802.11b: BPSK, QPSK, CCK
  • 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM and 256-QAM (proprietary extension)
  • 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM (proprietary extension)
  • 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM

802.11n high-throughput (HT) support:

• • HT20/40

802.11ac very high throughput (VHT) support:

• • VHT20/40/80

802.11ax high efficiency (HE) support:

• • HE20/40/80

Supported data rates (Mbps):

• • 802.11b: 1, 2, 5.5, 11
  • 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
  • 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM (proprietary extension)
  • 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80); 1,083 with 1024-QAM (MCS10 and MCS11, proprietary extension)
  • 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
  • 802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)
  • 802.11ax (6GHz): 3.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160)

802.11n/ac packet aggregation:

• • A-MPDU, A-MSDU

Transmit power:

• • Configurable in increments of 0.5 dBm

Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):

• • Per radio/band (2.4GHz / 5GHz / 6GHz): +21 dBm (18dBm per chain)
  • Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain.

Advanced Cellular Coexistence (ACC) minimizes the impact of interference from cellular networks

Maximum ratio combining (MRC) for improved receiver performance

Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance

Space-time block coding (STBC) for increased range and improved reception

Low-density parity check (LDPC) for high-efficiency error correction and increased throughput

Transmit beam-forming (TxBF) for increased signal reliability and range

802.11ax Target Wait Time (TWT) to support low-power client devices

802.11mc Fine Timing Measurement (FTM) for precision distance ranging

When configured for concurrent operation in 5GHz and 6GHz (only), the U-NII-4 band will be disabled.

• • Integrated omni-directional antennas for 2×2 MIMO with peak antenna gain of 5.5dBi in 2.4GHz, 5.5dBi in 5GHz and 5.5dBi in 6GHz. Built-in antennas are optimized for horizontal desk mounted orientation of the AP.
    • Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 4.4dBi in 2.4GHz, 4.7dBi in 5GHz and 4.7dBi in 6GHz.

• • Auto-sensing link speed (10/100/1000BASE-T) and MDI/MDX
  • 802.3az Energy Efficient Ethernet (EEE)

Up-/downlink (E1): Ethernet wired network port (RJ-45)

• • Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX
  • 2.5Gbps speed complies with NBase-T and 802.3bz specifications
  • 802.3az Energy Efficient Ethernet (EEE)

Downlink (E1-E4): Ethernet wired network ports (RJ-45)

• • Auto-sensing link speed (10/100/1000BASE-T) and MDI/MDX
  • 802.3az Energy Efficient Ethernet (EEE)
  • E4: POE-PSE: 802.3af POE output (15.4W max)

DC power interface

• • Circular: 48Vdc (nominal, +/- 5%), accepts 1.35mm/3.5mm center-positive circular plug with 9.5mm length

USB 2.0 host interface (Type A connector)

• • Capable of sourcing up to 1A / 5W to an attached device

Cellular radio module interface (accessible after removing the back cover)

• • Proprietary module interface, intended for 4G and 5G cellular radios
  • Capable of sourcing up to 7W of power to such a module

Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio

• • BLE: up to 3dBm transmit power (class 1) and -100dBm receive sensitivity (125kbps)
  • Zigbee: up to 3dBm transmit power and -95dBm receive sensitivity (250kbps)
  • Integrated omnidirectional antenna with roughly 30 to 40 degrees downtilt and peak gain of 5.0dBi

GNSS L1 (1575.42MHz) receiver supporting GPS, Galileo, GLONASS and BeiDou signals

• • Receive sensitivity: -162dBm (tracking)
  • Integrated omnidirectional antenna with roughly 30 to 40 degrees downtilt and peak gain of 2.7dBi

Advanced IOT Coexistence (AIC) allows concurrent operation of multiple radios in the 2.4GHz band

Built-in Trusted Platform Module (TPM) for enhanced security and anti-counterfeiting

Backlit LCD status display with scroll button

• • AP and cellular module status, firmware versions, etc.
  • Key configuration info
  • Interface status (Ethernet, WLAN, USB, cellular)
  • Connected device info

Visual system status indicator (multi-color LED)

Serial console interface (proprietary, micro-B USB physical jack)

Reset button: factory reset, LED mode control (normal/off)

Kensington security slot

Automatic thermal shutdown and recovery function

• • The AP ships with a compatible 48V/5W DC power adapter

Maximum (worst-case) power consumption: 40W

• • Without cellular module and no power drawn from USB or E4 port (PSE): 14.5W
  • Worst-case adder when sourcing 5W to an attached USB device: 5.7W
  • Worst-case adder when sourcing 15.4W to an attached POE device: 16.0W
  • Worst-case adder when using AP-605CM12 module: 3.8W

Maximum (worst-case) power consumption in idle mode: 4.9W

• • This assumes no power is supplied to any attached module or device

• • 225mm (W) x 150mm (D) x 40mm (H)
  • 900g

Dimensions/weight (AP-605R12; unit, LTE antennas folded):

• • 225mm (W) x 180mm (D) x 67mm (H)
  • 1080g

Dimensions/weight (AP-605R; shipping):

• • 373mm (W) x 309mm (D) x 107mm (H)
  • 1935g

Dimensions/weight (AP-605R12; shipping):

• • 373mm (W) x 309mm (D) x 107mm (H)
  • 2110g

• • Temperature: 0C to +40C / +32F to +104F
  • Relative humidity: 5% to 95%
  • ETS 300 019 class 3.2 environments
  • AP is plenum rated for use in air-handling spaces

Storage conditions

• • Temperature: -25C to +55C / +13F to +131F
  • Relative humidity: 10% to 100%
  • ETS 300 019 class 1.2 environments

Transportation conditions

• • Temperature: -40C to +70C / -40F to +158F
  • Relative humidity: up to 95%
  • ETS 300 019 class 2.3 environments

• • AP-605R: 697khrs (80yrs)
  • AP-605CM12: 4.5Mhrs (514yrs)
  • AP-605R12: 605khrs (69yrs)

CE Marked

RED Directive 2014/53/EU

EMC Directive 2014/30/EU

Low Voltage Directive 2014/35/EU

UL/IEC/EN 60950

IEC/EN 62368-1

EN 60601-1-1, EN60601-1-2

For more country-specific regulatory information and approvals, please see your HPE Aruba Networking representative.

AP-605CM12 CAT12 LTE Module: APINCM12

• • Wi-Fi CERTIFIED a, b, g, n, ac
  • Wi-Fi CERTIFIED 6E (ax, 6GHz)
  • WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE)
  • WMM, WMM-PS, Wi-Fi Agile Multiband
  • Passpoint (release 2)

Bluetooth SIG

• Ethernet Alliance (POE, PSE device, class 3)

• HPE Aruba Networking’s hardware limited lifetime warranty.
