| Print Method |
Thermal Transfer / Direct Thermal |
| Resolution |
203 dpi (8 dots/mm) / 300 dpi (12 dots/mm) / 600 dpi (24 dots/mm) |
| Print Speed |
6IPS (150 mm/s) / 4IPS (102 mm/s) |
| Print Width |
4.09” (104 mm) |
| Print Length |
Min. 0.16” (4 mm)** ; Max. 100” (2540 mm) / Min. 0.16” (4 mm)** ; Max. 45” (1143 mm) |
| Processor |
32-bit RISC CPU |
| Memory |
8MB Flash (4MB for user storage) / 16MB SDRAM |

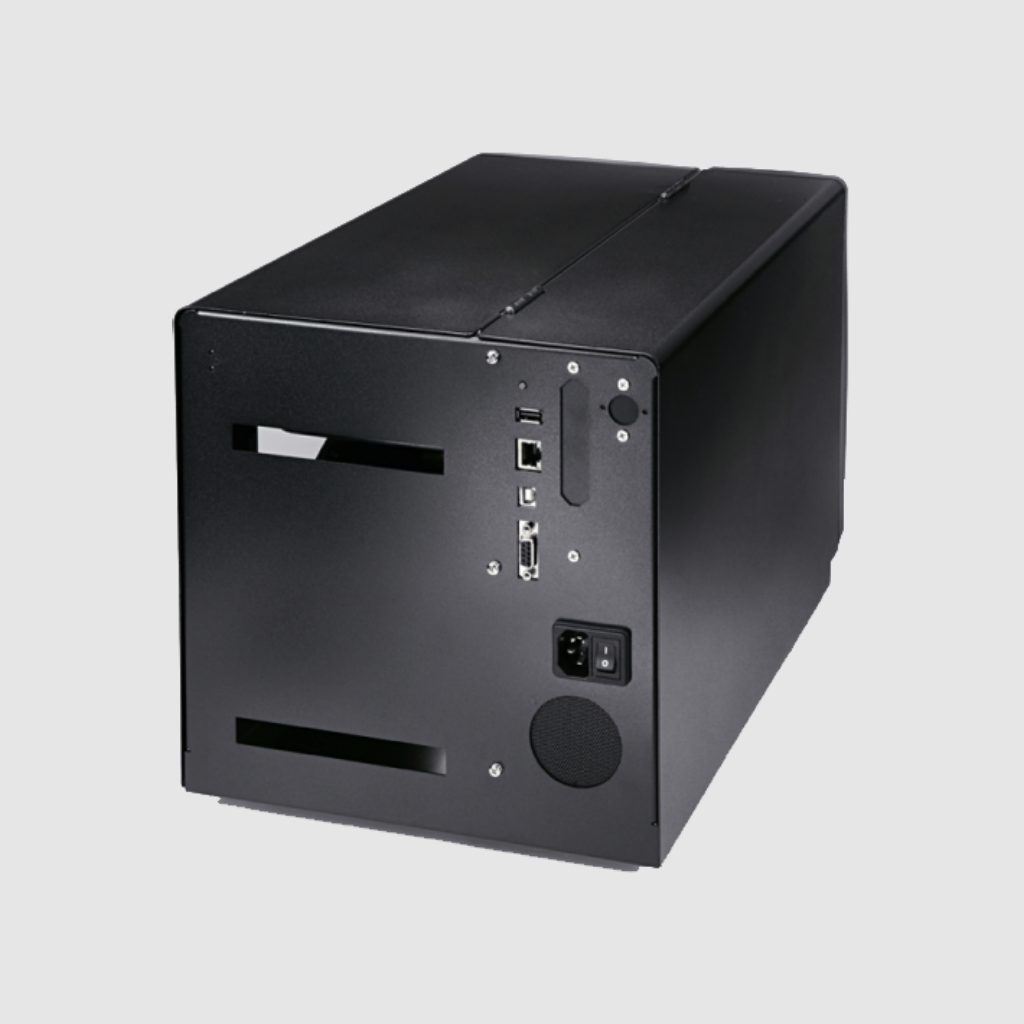

| Interfaces |
• Serial port: RS-232 (DB-9) • USB port • Ethernet 10/100Mbps |

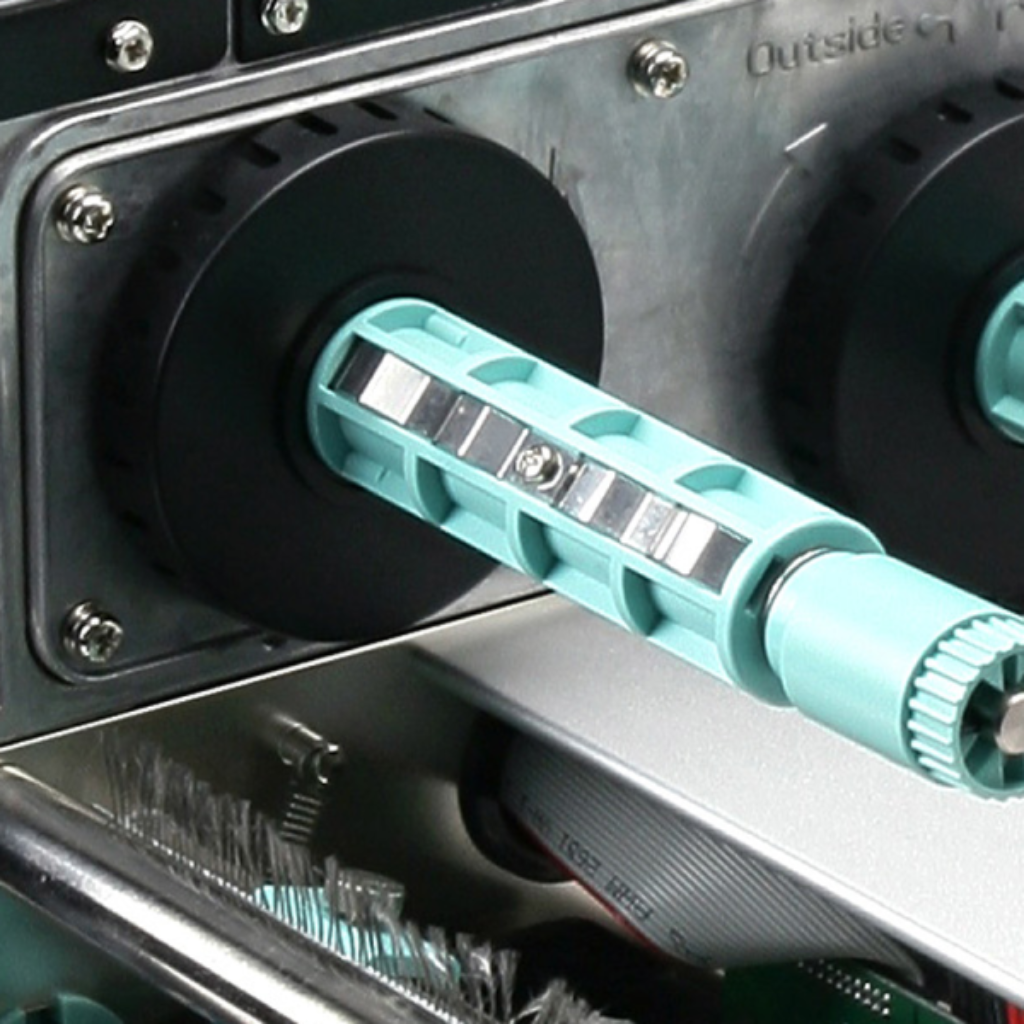

| Ribbon |
• Length: 1471’ (450 m) • Width: 1.18” Min – 4.33” (30 mm – 110 mm) Max • Core diameter: 1” (25.4 mm) |

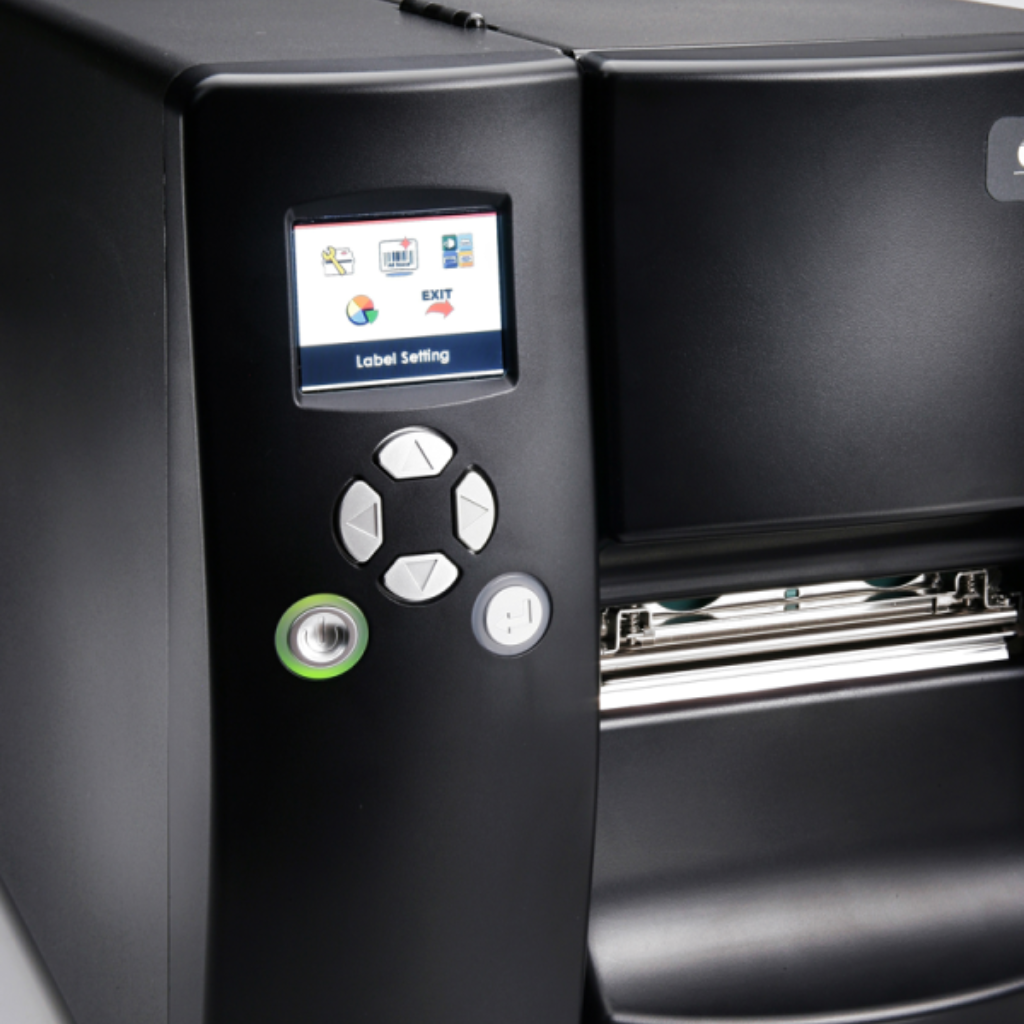

| Control Panel |
• Three mono-color LED indicators: Power on, Ribbon out, Media out • Control keys: FEED, PAUSE and CANCEL • Calibration button |
