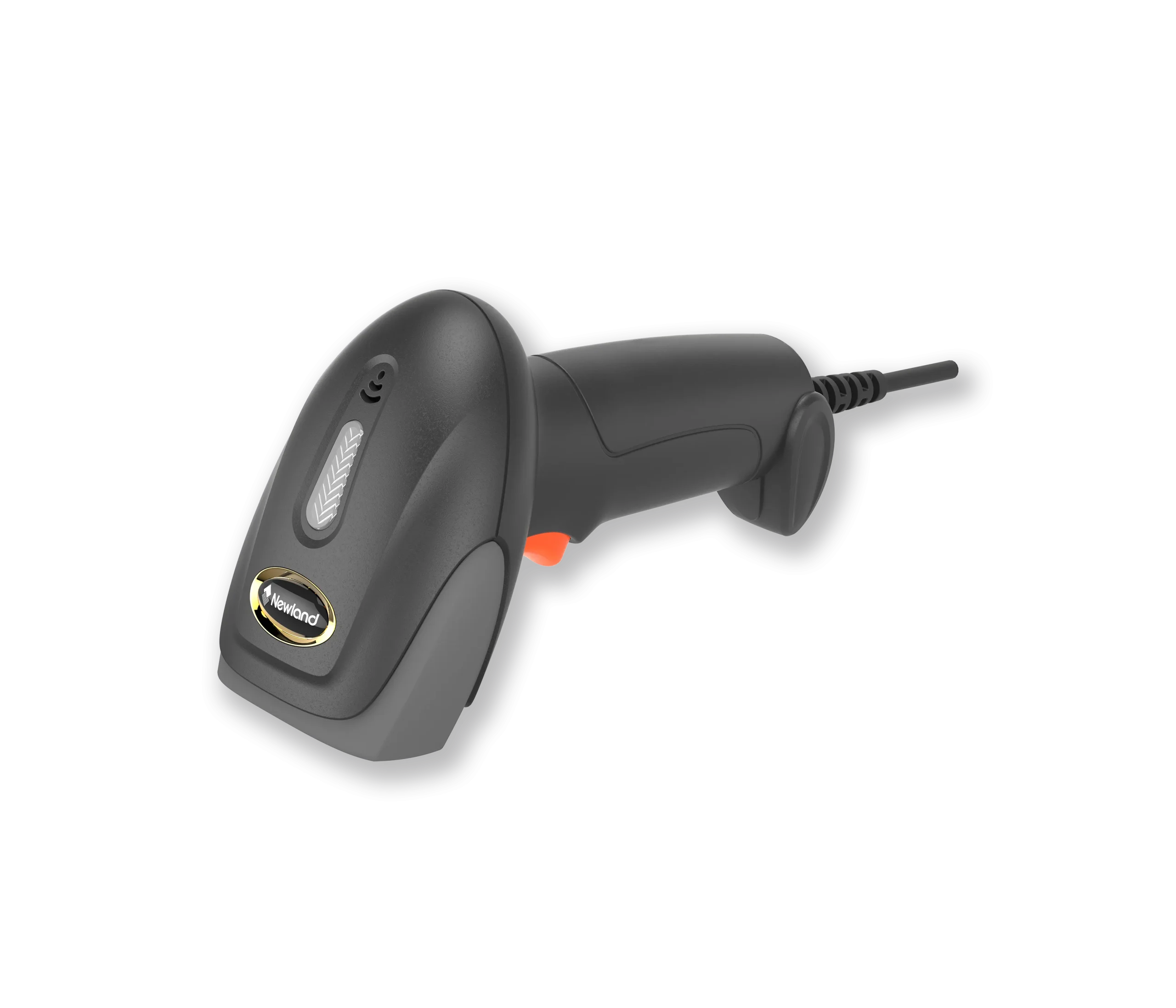

HR1070 Handheld Scanner

Cost-effective Solution

HR1070 handheld scanner delivers aggressive scanning capabilities and excellent user experiences at an attractive price.

Ergonomic Lightweight Design

This ergonomic lightweight scanner fits comfortably in any user’s hands to reduce the fatigue of long-time operation, ideally suited for scan-intensive applications.

Snappy Scanning Performance

HR1070 scanner offers an impressive read rate of up to 300 scans per second, helping boost productivity and profitability.

Product specifications

Decode Capability 1D
Dimension 160×95×65mm
Connectivity Corded
Weight 220g
Interface USB


Image Sensor Linear imager
Illumination Red LED (610nm~640nm)
Symbologies 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 25, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey.
Resolution ≥5mil
Typical Depth of Field EAN-13: 50mm-480mm (13mil)
Code 39: 50mm-180mm (5mil)
Scan Angle Pitch: ±60°, Roll: 30°, Skew: ±60°
Min Symbol Contrast* 30%
Scan Rate 300 scans per second


Interface USB
Input Voltage DC5V
Current@5VDC Operating: 60mA±10mA
Standby: 15mA±5mA
Maximum: <130mA
Dimensions (L×W×H) 160×95×65mm
Weight 220g (USB cable included)
Notification Beep, LED indicator


Operating Temperature -20°C to 60°C (-4°F to 140°F)
Storage Temperature -40°C ~+85°C (-40°F to 185°F)
Humidity 5%~95% (non-condensing)


Certificates & Protection FCC Part15 Class B, CE EMC Class B
