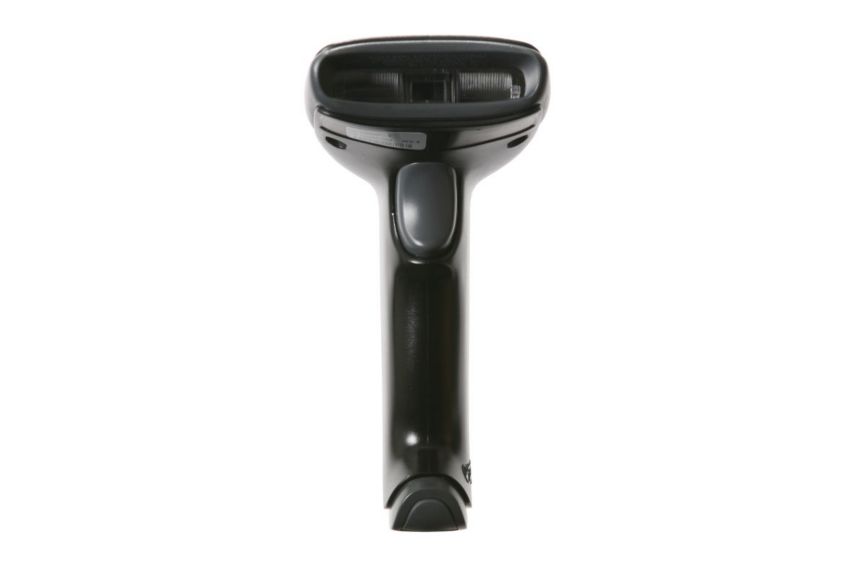

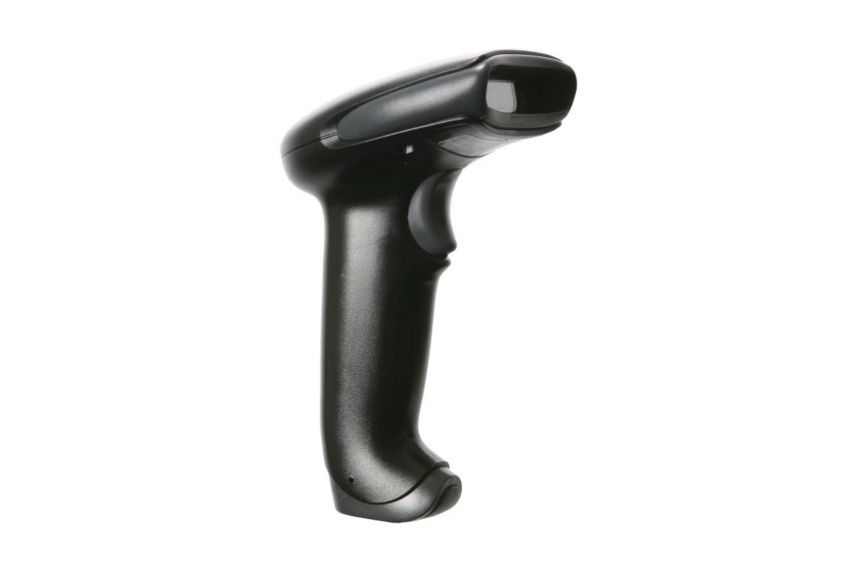

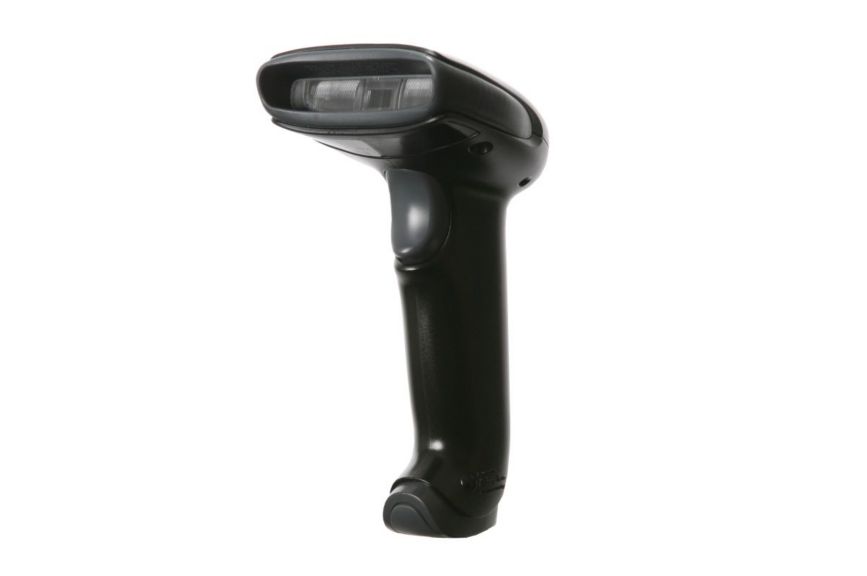

Hyperion 1300g Light Industrial Scanner

The Hyperion™: 1300g linear-imaging barcode scanner is ideal for scan-intensive and light industrial applications. It features an ideal balance of performance, ergonomics and best-in-class durability (as in tough-enough-to-hammer-nails durable). For years of hassle-free, getting-the-job-done performance, the Hyperion 1300g scanner is the one.

  • Highly Versatile: Eliminates the need to purchase specialty scanners by providing the ability to read out to 18 inches (457mm) on 13 mil bar codes, as well as high density bar code reading in a single device.
  • Superior Hand-Held Scanning: Increases throughput by offering intuitive and aggressive hand-held scanning performance.
  • Remote MasterMind®: Scanner Management Software: Provides a quick and convenient solution for IT administrators seeking to manage all scanners within their network from a single remote location.
  • Automatic Interface Detection: Supports all popular interfaces in one device, replacing the time consuming process of scanning programming bar codes with automatic interface detection and configuration.
  • Comfortable, Ergonomic Design: Ensures operator comfort and productivity with a gun-shaped form factor optimized for intensive hand-held scanning.
  • Class-Leading Durability: Increases up time and reduces service costs with a reliable design that utilizes no moving parts and full impact resistant bumpers.

Specifications

FEATURES

Features

  • Automatic Interface Detection

DIMENSIONS

Overall Dimensions

  • 15 x 11.2 x 7.9 cm
  • 5.9 x 4.4 x 3.1 in

SCANNING SPECIFICATIONS

Depth of Field

  • 0.5 – 26 in

Scanning Range

  • Standard range (SR)

Print Contrast

  • 20

Pitch

  • 65

Brightness

  • 0 – 70000 lux

Skew

  • 65

Scan Pattern

  • Single Scan Line

Motion Tolerance

  • 51 cm/s (20 in/s)

Decode Capability

  • 1D

NETWORK

Bluetooth Specifications

  • N/A

Bluetooth

  • No

HARDWARE

Host System Interface

  • KBW
  • RS-232
  • RS-232C
  • RS-485
  • USB

Wireless

  • No

Engine Type

  • 1D Imager

ELECTRICAL

Standby Power

  • 0.63

ENVIRONMENTAL

Storage Temperature Range

  • – 40 – 140 °F
  • – 40 – 60 °C

Operating Humidity

  • 0 – 95 %

STANDARDS & APPROVALS

Drop Specifications

  • 50 1.5 m (5 ft) drops to concrete

Protection Ratings

  • IP41

OTHERS

Form Factor

  • Gun Shape

Operating Power

  • 1 W

Input Voltage

  • 5 V DC

Operating Temperature

  • 0 – 50 °C
  • 32 – 122 °F

Warranty Duration

  • 5 yr

Brand

  • Honeywell

Power Connector Type

  • Corded

Resources

Data Sheet

Hyperion 1300g Light-Industrial Scanner Data Sheet (180.96 KB)
