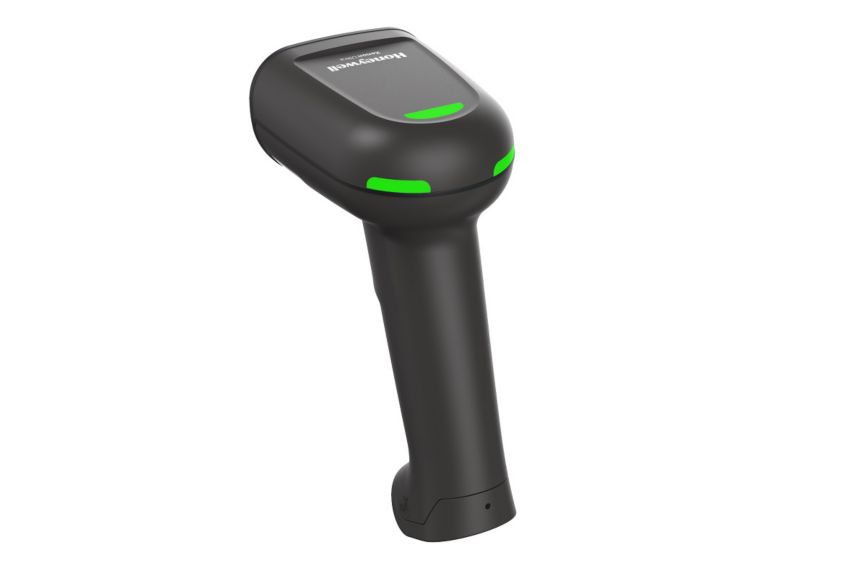

Xenon Ultra 1960 Scanner

Roll over image to zoom in
Click to open expanded view

Category:

Barcode scanning has become a critical workflow throughout a variety of industries – including light industrial and retail – making it a key ingredient in achieving streamlined operations. Deploying a reliable scanning solution can help an enterprise feel confident in meeting the increased demands and heightened expectations of their customers and achieve lasting success.

The Xenon Ultra family of handheld scanners is a premium evolution of the widely known legacy Xenon and Xenon XP general purpose scanners, taking our industry-leading scan performance and reliability one step further.

Specifications

FEATURES

Features

  • Management Utility (SMU) creates a holistic solution that automates how you deploy and update the scanners in your environment.
  • Object Detection (IR): Avoid false scanner wake ups to lower/prevent patient annoyance or disturbances
  • Optimized Illumination

DIMENSIONS

Overall Dimensions

  • 108.2mm x 70.4mm x 160.2mm
  • 4.3in x 2.8in x 6.3in

SCANNING SPECIFICATIONS

Motion Tolerance

  • For 13 mil UPC at optimal focusSR – 4 meters/secondHD – 3.4 meters/second

Decode Capability

  • 1D/2D

Scanning Range

  • Standard Range (SR) and High Density (HD) Capabilites.

Scan Pattern

  • Area Imager

Brightness

  • 0 – 100,000 Lux

HARDWARE

Host System Interface

  • Keyboard Wedge
  • RS-232
  • USB

Wireless

  • No, corded only connection

Aimer Type

  • Green Dot LED

ENVIRONMENTAL

Storage Temperature Range

  • -40°C to 70°C
  • -40°F to 158°F

Operating Humidity

  • 0 to 95% relative humidity, non-condensing

STANDARDS & APPROVALS

Tumble Specifications

  • 2,000 0.5m tumbles
  • 2,000 1.6ft tumbles

Protection Ratings

  • IP52

Drop Specifications

  • Engineered to withstand 50 1.8 m drops to concrete across operating temp range

OTHERS

Form Factor

  • Gun Shape

Application

  • Assembly Line
  • Component Tracking
  • Electronic Manufacturing and Retail
  • High and low throughput POS
  • In-store inventory
  • Self-Checkout

Operating Power

  • 2.5W (500 mA @ 5V DC)

Operating temperature

  • 0°C to 50°C
  • 32°F to 122°F

Warranty Duration

  • 5 years

Power Connector Type

  • Corded

Resources

Data Sheet

Xenon Ultra 1960g Data Sheet (75.82 KB )

Xenon Ultra 1960li Data Sheet(102.69 KB)

Manuals and Guides

User Guide: Xenon Ultra 196x Series Accessories – Simplified Chinese (196X-ACC-SC-UG-01 Rev A) (1.63 MB)

User Guide: Xenon Ultra 196x Series Accessories – Traditional Chinese (196X-ACC-TC-UG-01 Rev A) (1.67 MB)

User Guide: Xenon Ultra 196x Series Accessories – Korean (196X-ACC-KO-UG-01 Rev A)(1.6 MB )

Quick Start Guide: Xenon Ultra 1960x Series – Simplifed Chinese (1960-SC-QS-01 Rev A) (407.17 KB)

Quick Start Guide: Xenon Ultra 1960x Series – Traditional Chinese (1960-TC-QS-01 Rev A) (411.38 KB )

Quick Start Guide: Xenon Ultra 1960x Series – Korean (1960-KO-QS-01 Rev A) (383.83 KB )

Quick Start Guide: Xenon Ultra 1960x Series – Japanese (1960-JA-QS-01 Rev A) (389.25 KB)

User Guide: Xenon Ultra 196x Series Accessories (196X-ACC-EN-UG-01 Rev B) (1.54 MB)

Healthcare Disinfectant-Ready Housing Cleaning Guide (483.74 KB)

General Purpose Disinfectant-Ready Housing Devices Cleaning Guide (464.29 KB)

User Guide: Network And Security For Honeywell Scanners (ALLSKU-SC-EN-SG-01 Rev A) (1.16 MB)

QHoneywell OCR Programming User Guide (OCR-UG Rev B) (171.01 KB)

User Guide: Xenon Ultra 196x Series (XEN196X-EN-UG-01 Rev C) (5.93 MB)

Quick Start Guide: Xenon Ultra 1960x Series (292.98 KB)
