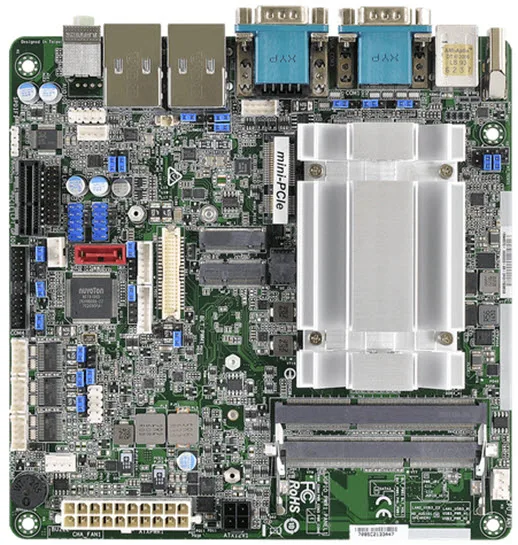

WADE-8172 is based on Intel® Celeron® processor N3350. With dual-channel DDR3L memory and rich I/O sets, WADE-8172 empowers energy-efficient solutions for point-of-sale (POS) and industrial automation applications.
Intel® Celeron® Processor N3350 Based Industrial Mini-ITX Motherboard with VGA, HDMI, LVDS, Dual GbE, USB 3.0, SATA III, Mini PCIe, M.2.
|
MODEL
|
WADE- 8172
|
|
Form Factor
|
Mini-ITX
|
|
CPU
|
Intel® Celeron® processor N3350 in FCBGA1296 package
|
|
Chipset
|
N/A
|
|
BIOS
|
AMI UEFI
|
|
Memory
|
upto 8 GB DDR3L 1600/1333 MHz memory (non-ECC) on 2x 204-pin SO-DIMM socket
|
|
Expansion
|
1x PCIe x1 slot
1x M.2 socket 1x full/half size Mini PCIe socket with PCIe x1 and USB(shared) |
|
Display
|
LVDS/HDMI/VGA
|
|
Audio
|
Realtek ALC887 HDA codec
|
|
LAN
|
2x GbE
|
|
Serial Port
|
2x RS-232/422/485
4x RS-232 |
|
USB
|
4x USB3.0
4x USB2.0 |
|
Storage Device
|
1x SATA III 1x M.2 socket
|
|
GPIO
|
8 bit
|
|
Others
|
N/A
|
|
Dimension
|
170 x 170mm
|
| Ordering Guide | |
|---|---|
|
AB1-3F78
|
(R).WADE-8172-N3350 Mini-ITX ESB.Intel® Apollo lake SoC Processor N3350 w/DDR3L/ VGA/LVDS/HDMI/dual GbE LAN/SATA
|
| Packing List |
|---|
|
One Driver CD
|
|
One I/O shield
|
|
One SATA cable
|
|
One WADE-8172 motherboard
|
