Xenon XP 1952g Battery-Free Scanner

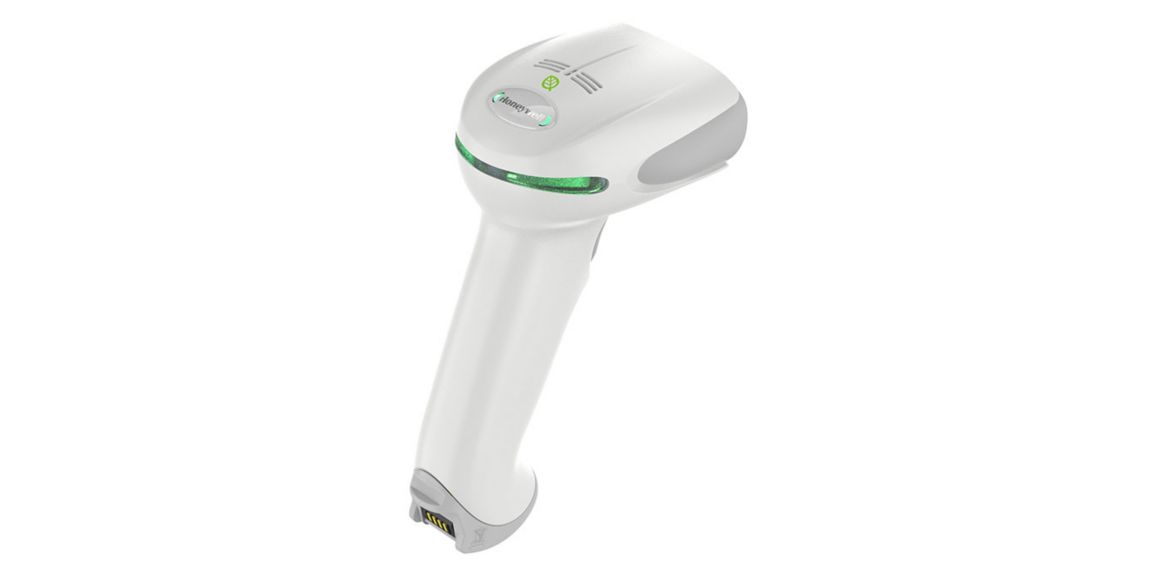

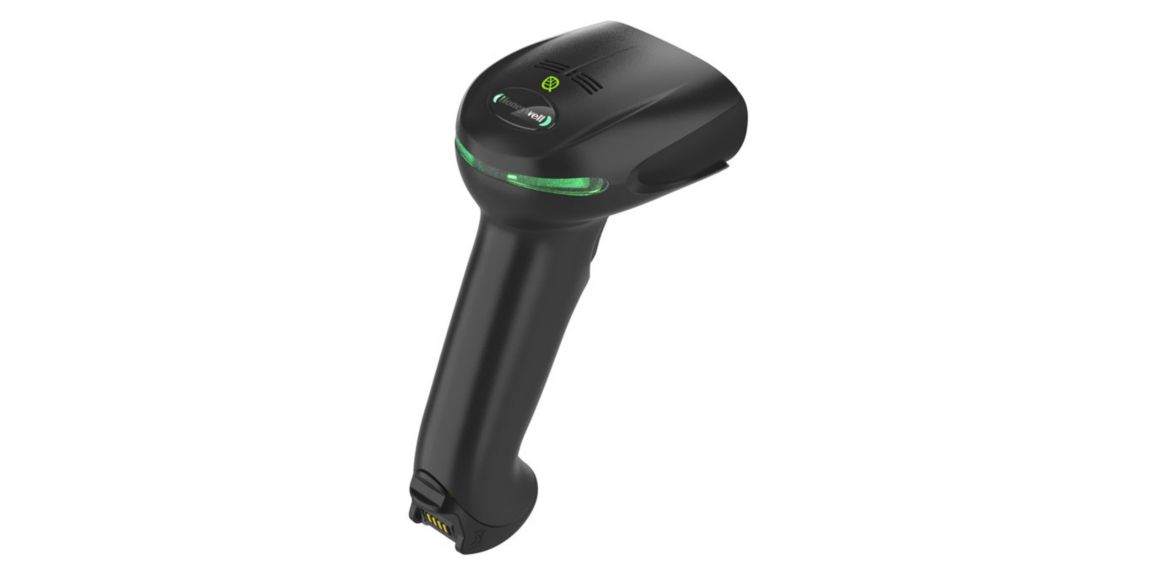

The Honeywell Xenon™ Extreme Performance (XP) 1952g-bf area-imager scanner is Honeywell’s latest barcode scanner powered by supercapacitors – eliminating the battery for a green, environmentally friendly scanner. This powerhouse solution is capable of scanning over 450 barcodes on a single charge, and can be recharged in less than 60 seconds via a powered USB port.

    • When fully charged, the scanner can typically scan over 450 UPC/EAN codes without the need for recharging – more than enough to check out 25 customers.
    • Supercapacitors hold their charge for hours when fully charged. So operators who forget to place their scanner in the charger prior to break won’t impact operations upon return.
    • Two independently configurable recharge alerts remind the operator to place the scanner back into the base for charging, ensuring continuous operation.
    • The Xenon XP 1952g-bf scanner is fully charged in under two minutes with a simple USB connection, and under 30 seconds when a powered USB or external power supply is used.
    • When the scanner is placed in the base, the ready-toscan LED typically flashes in less than 20 seconds to notify the operator that there is sufficient power to support over 100 scans

The Honeywell Xenon™ Extreme Performance (XP) 1952g-bf area-imager scanner incorporates the latest in battery-free technology, offering the freedom of Bluetooth® low-energy wireless technology without the maintenance hassles or long recharge time associated with traditional batteries. Like all other Xenon scanners, the Xenon XP 1952g-bf scanner delivers aggressive barcode scanning performance – even on poor-quality or damaged barcodes.An integrated Bluetooth low-energy Class 2 radio gives users complete freedom of movement up to 10 meters (33 feet) from the base in a typical work environment. For added convenience, a paging system on the base activates auditory signals that help to locate a misplaced scanner. By eliminating the trip-hazard of tethered cables, the Xenon XP 1952g-bf scanner can provide a safer and more productive environment.The scanner’s wireless technology completely eliminates the battery, replacing it with supercapacitors capable of achieving a full charge in less than two minutes via the USB port (under 30 seconds when using a powered USB port or external wall adapter) and typically providing at least 450 scans on UPC/EAN codes without recharging. This makes the Xenon XP 1952g-bf scanner ideal for applications centered around POS, workstations, and counters – for example, as the secondary scanner to a bioptic (in-counter) scanner, or in support of shipping and receiving functions at warehouses. With no battery, a common maintenance hassle is removed and the scanner is lighter and more environmentally friendly.Built on the proven Xenon platform, the Xenon XP 1952g-bf scanner offers high-performance linear barcode scanning and the convenience of wireless – all without a battery.

Specifications

DIMENSIONS

Overall Dimensions

  • 104 mm x 71 mm x 160 mm
  • 4.1 in x 2.8 in x 6.3 in

SCANNING SPECIFICATIONS

Decode Capability

  • 1D/2D

Pitch

  • ±45°

Skew

  • ±65°

Motion Tolerance

  • Up to 400 cm/s (157 in/s) for 13 mil UPC at optimal focus

Print Contrast

  • 20% minimum reflectance difference

Scanning Range

  • High density (HD)
  • Standard range (SR)

Scan Pattern

  • Area ImageNEWLINE(1280 x 800 pixel array

Number of Scans

  • Typically more than 490 scans

Brightness

  • 0 to 100,000 lux
  • 9,290 ft-candles

NETWORK

Bluetooth Specifications

  • 2.4 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v4.2

Bluetooth Specifications

  • 2.4 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v4.2

HARDWARE

Host System Interface

  • IBM 46xx (RS485)
  • Keyboard Wedge
  • RS-232
  • USB

Wireless

  • Class 2: 10 m (33 ft) line of sight

ELECTRICAL

Standby Power

  • 210

ENVIRONMENTAL

Operating Humidity

  • 0 to 95% relative humidity, non-condensing

Storage Temperature Range

  • -40°C to 70°C
  • -40°F to 158°F

STANDARDS & APPROVALS

Drop Specifications

  • Designed to withstand 50 1.8 m (6 ft) drops to concrete

Protection Ratings

  • IP52



OTHERS

Operating Power

  • 5W (1A @ 5V)

Operating temperature

  • 0°C to 50°C
  • 32°F to 122°F

Warranty Duration

  • Three-year factory warranty

Brand

  • Honeywell

Power Connector Type

  • Cordless
