- 4″ wide, DT/TT Industrial Printer, India, 600 dpi, 4 IPS, Touch LCD,
- I/F: USB &Serial &Ethernet &USB host x3, support BT, Wifi (011-Z6i01J-A00)
- I/F: USB &Serial &Ethernet &USB host x3, support BT, Wifi

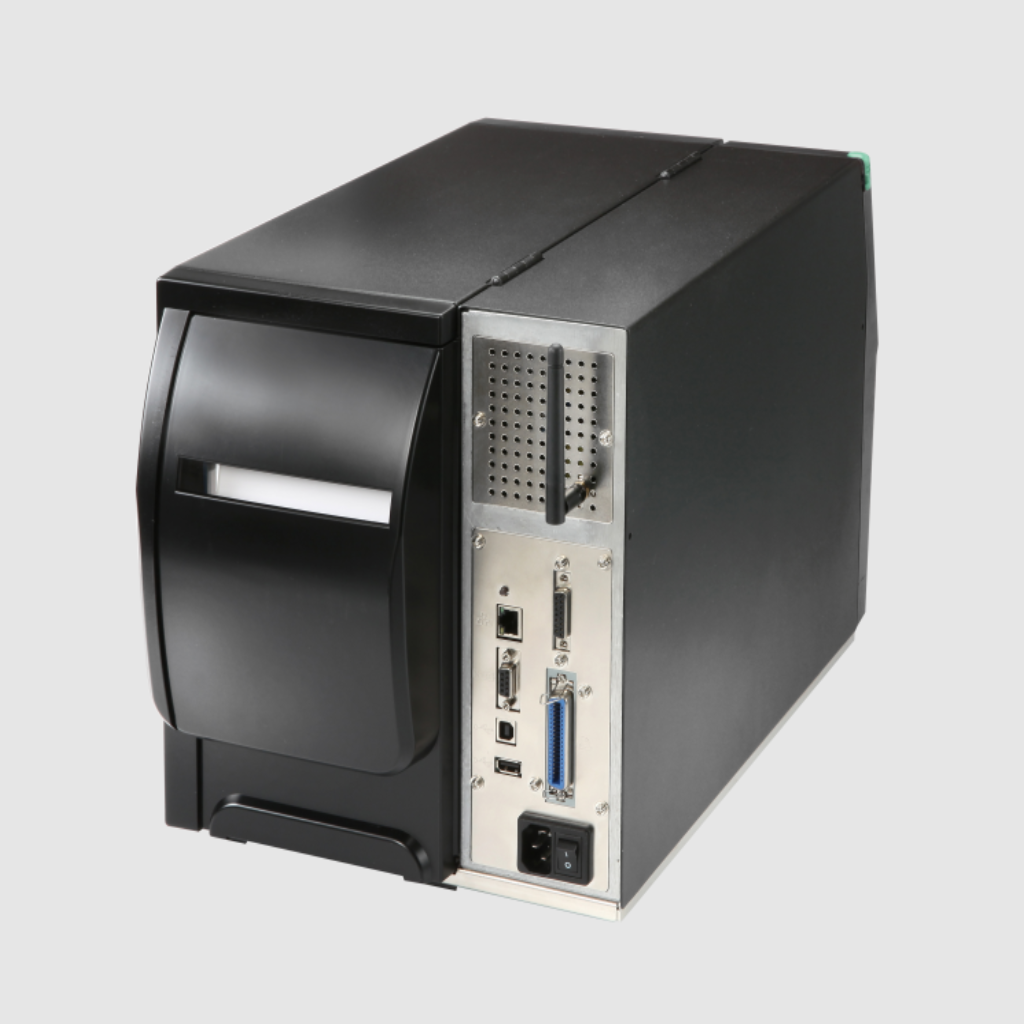

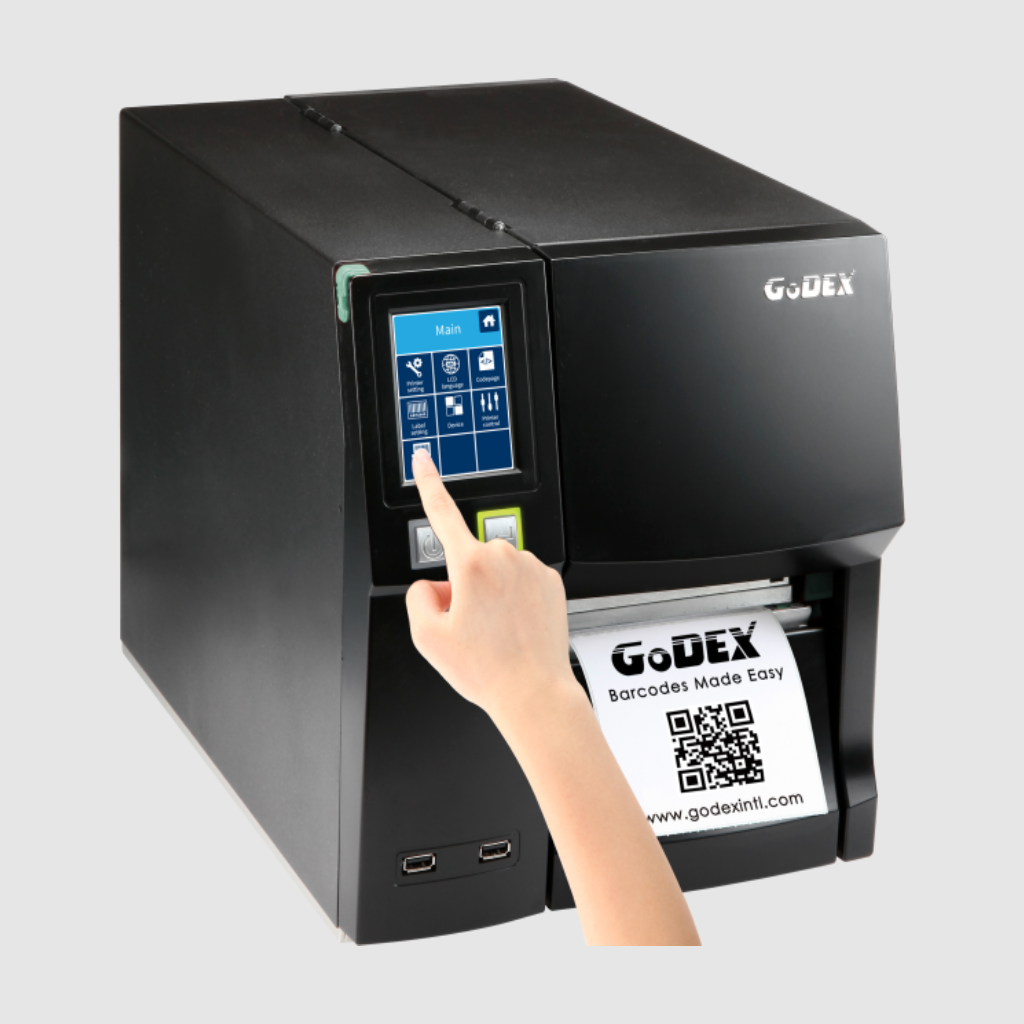

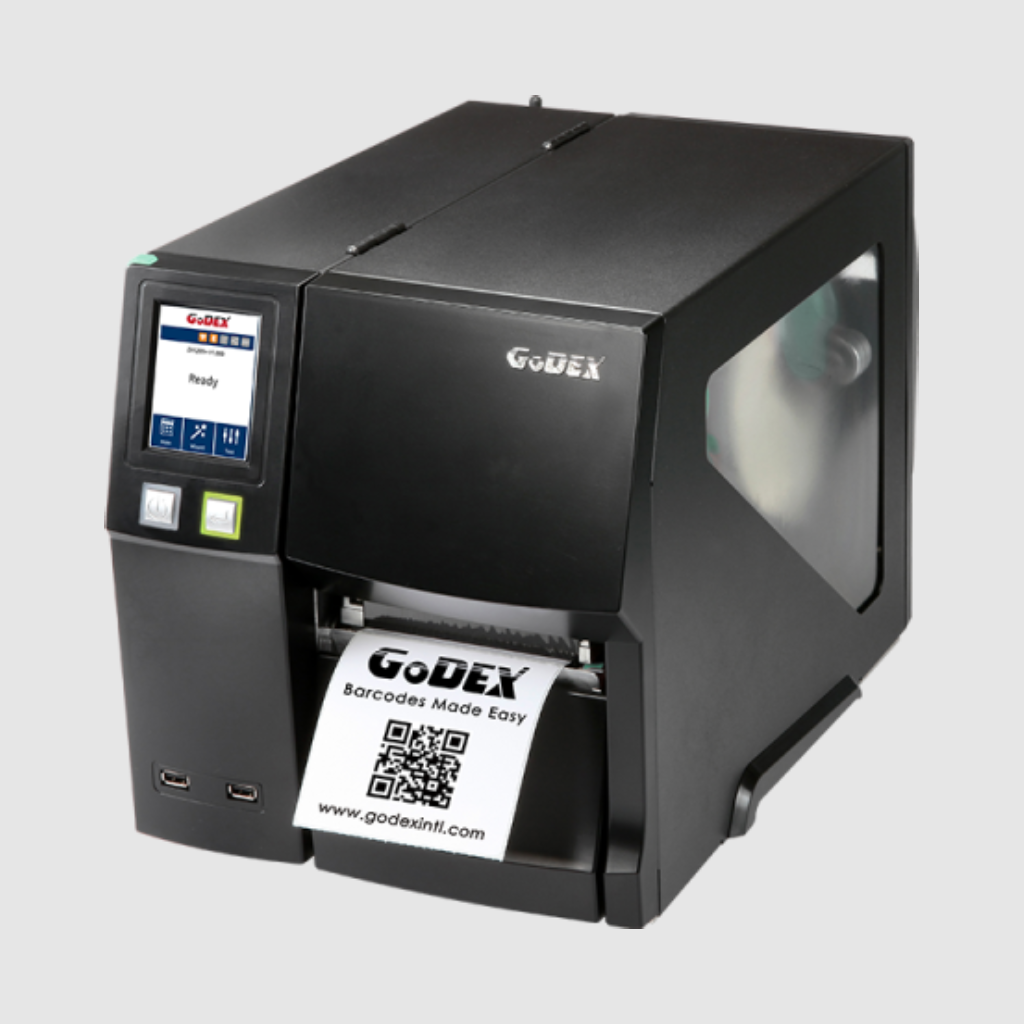

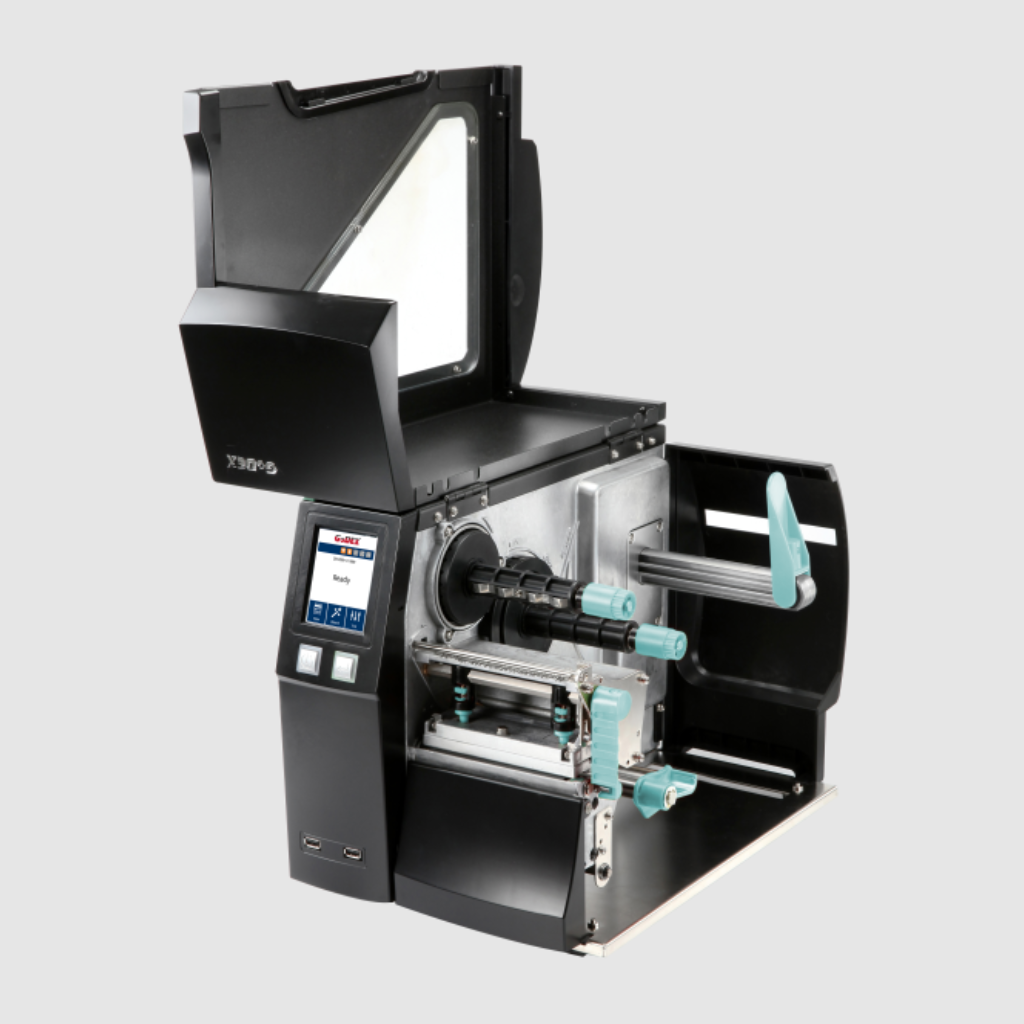

ZX1600i plus
Roll over image to zoom in
The Rise of Automation: ZX1000i+ is the Selection.
The ZX1000i+ series is equipped with an effective and robust print mechanism, designed and built for high-volume industrial printing jobs, and suitable for any segment in the production chain.
- All-Metal Frame Structure
- User-Friendly Interface
- Multiple Interfaces for Maximum Connectivity
- Various Output Options
- Supports High-volume Printing Jobs
- Easy Maintenance
- Full Range Adjustable Media Sensors
Specifications
| Print Method | Thermal Transfer / Direct Thermal |
| Resolution | 203 dpi (8 dots/mm) / 300 dpi (12 dot/mm) / 600 dpi (24 dots/mm) |
| Print Speed | Up to 10 IPS (254 mm/s) / Up to 7 IPS (178 mm/s) / Up to 4 IPS (102 mm/s) |
| Print Width | 4.09” (104 mm, up to 108mm) / 4.09” (104 mm, up to 105.7mm) / 4.09” (104 mm, up to 105.6mm) |
| Print Length | Min. 0.12” (3 mm)**; Max. 279.53” (7100 mm) / Min. 0.12” (3 mm)**; Max. 125.98” (3200 mm) / Min. 0.12” (3 mm)**; Max. 31.5” (800 mm) |
| Processor | 32-bit RISC CPU |
| Memory | Flash 256 MB SDRAM 256 MB |
| Interfaces | • USB 2.0 (Type B) • Serial Port (RS232) • Ethernet 10/100 Mbps • USB Host *3(Type A). 2 ports at the front panel, 1 port at the rear panel |
| Ribbon | • Length Max. 1476’ (450 m) • Width Min. 1.18” (30 mm) – Max. 4.33” (110 mm) • Ribbon roll diameter 3” (76.2 mm) • Core diameter 1” (25.4 mm) |
| Control Panel | • Backlight 3.2” touch screen LCD • 1 Power on/off button with green colour LED backlight • 1 Control key: FEED/PAUSE/CANCEL with dual colour LED backlight: Ready(Green); Error(Red) • 1 Calibration button at rear panel |
