- 4″ wide, DT/TT Industrial Printer, India, 203 dpi, 6 IPS, LCD, I/F: USB
- Serial & Ethernet & USB host, support BT, Wifi (011-42i00J-A00)

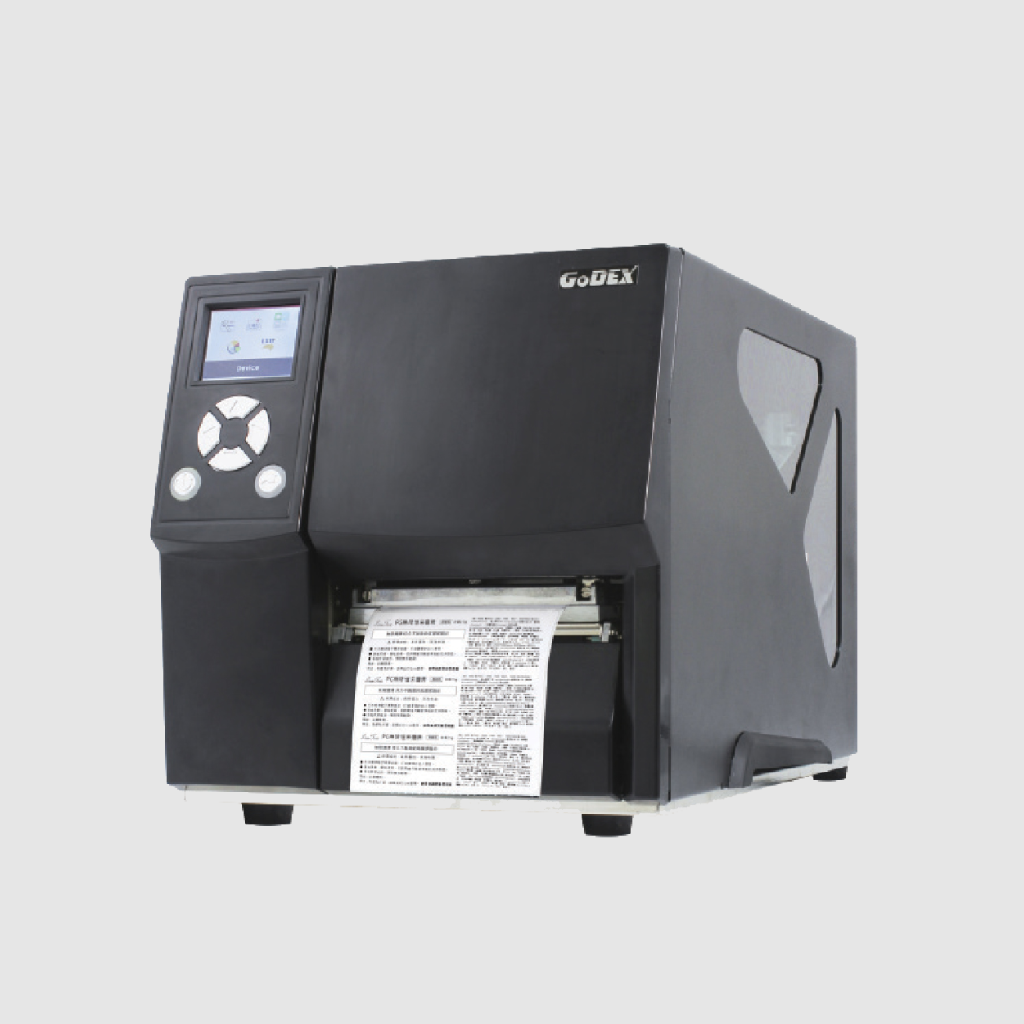

ZX430i plus
Roll over image to zoom in
Power & Precision in One Compact Design
Small in size and powerful in performance. Upgraded Flash and SDRAM enable the ZX400i+ series to withstand more difficult printing conditions.

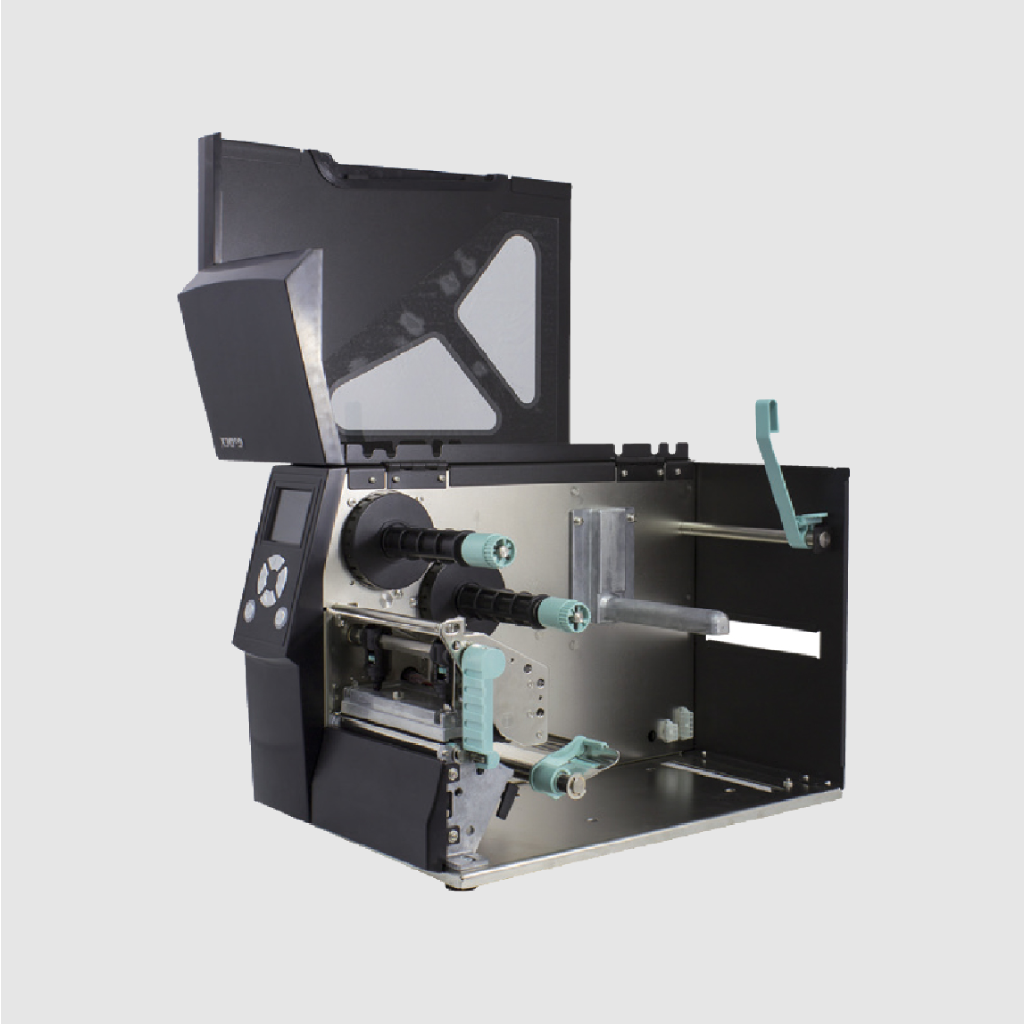

- Die-Cast Printing Mechanism
- Small Footprint
- 1 Inch Label Roll Holder
Key Features
- 4″ wide, DT/TT Industrial Printer, India, 300 dpi, 4 IPS, LCD, I/F: USB
- Serial &Ethernet &USB host, support BT, Wifi (011-43i00J-A00)
- Serial &Ethernet &USB host, support BT, Wifi
| Versatile Connectivity | Connect through USB (Type B & Host), Serial, Parallel, Ethernet, or optional Wi-Fi and Bluetooth modules for seamless integration with various systems. |
|---|---|
| Powerful Memory | 32MB SDRAM and a massive 128MB Flash memory with 60MB user-available storage for data and downloaded objects |
| Media Versatility | Print on a wide range of label types to suit your needs. |
| Sharp & Speedy Printing | Delivers crisp 300 dpi resolution barcodes at speeds up to 6 inches per second. |
| High-Volume Printing | Supports 450-meter ribbons and 8-inch diameter labels with a 3-inch core for bulk printing jobs |
| User-Friendly Operation | Features an intuitive colour LCD panel for easy configuration and setup |
| Free Design Software | Includes GoLabel software for simple and efficient label creation. |
| Ideal for Light Industrial Tasks | Built to handle demanding printing tasks in light industrial environments. |
Specifications
- 4″ wide, DT/TT Industrial Printer, India, 300 dpi, 4 IPS, LCD, I/F: USB
- Serial &Ethernet &USB host, support BT, Wifi (011-43i00J-A00)
- Serial &Ethernet &USB host, support BT, Wifi
| Versatile Connectivity | Connect through USB (Type B & Host), Serial, Parallel, Ethernet, or optional Wi-Fi and Bluetooth modules for seamless integration with various systems. |
|---|---|
| Powerful Memory | 32MB SDRAM and a massive 128MB Flash memory with 60MB user-available storage for data and downloaded objects |
| Media Versatility | Print on a wide range of label types to suit your needs. |
| Sharp & Speedy Printing | Delivers crisp 300 dpi resolution barcodes at speeds up to 6 inches per second. |
| High-Volume Printing | Supports 450-meter ribbons and 8-inch diameter labels with a 3-inch core for bulk printing jobs |
| User-Friendly Operation | Features an intuitive colour LCD panel for easy configuration and setup |
| Free Design Software | Includes GoLabel software for simple and efficient label creation. |
| Ideal for Light Industrial Tasks | Built to handle demanding printing tasks in light industrial environments. |
| Print Method | Thermal Transfer / Direct Thermal |
| Resolution | 300 dpi (12 dot/mm) |
| Print Speed | 4 ips (102 mm/s) |
| Print Width | 4.16” (105.7mm) |
| Print Length | Min. 0.16” (4 mm)** ; Max. 73.19“(1859 mm) |
| Processor | 32-bit RISC CPU |
| Memory | Flash 128 MB Flash (60 MB for user storage) SDRAM 32 MB |
| Sensor Type | Adjustable reflective sensor and transmissive sensor, left aligned |
| Media | Type Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width Tear : Min. 1” (25.4 mm) – Max. 4.64” (118 mm) Cutter : Max. 4.61” (117 mm) Dispenser / Rewind : Max. 4.64” (118 mm) Thickness Min. 0.003” (0.076 mm) – Max. 0.01” (0.25 mm) Label roll diameter Max. 8” (203.2 mm) with 3″ (76.2 mm) core Max. 6” (152.4 mm) with 1.5″ (38.1 mm) core Max. 5″ (127 mm) with 1″ (25.4 mm) core Core diameter Min. 1 ” (25.4 mm) – Max. 3″ (76.2 mm) |
| Ribbon | Types Wax, wax/resin, resin Length Max. 1476’ (450 m) Width Min. 1.18” (30 mm) – Max. 4.33” (110 mm) Ribbon roll diameter 3” (76.2 mm) Core diameter 1” (25.4 mm) |
| Printer Language | EZPL, GEPL, GZPL auto switch |
| Software | Label design software GoLabel (for EZPL only) Driver Windows 2000, XP, Vista, Windows 7, 8.1 and 10 , Windows Server 2003 & 2008、 MAC、 Linux DLL Win CE, .NET, Andriod, Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Windows 10 |
| Resident Fonts | Bitmap Fronts : 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable |
| Download Fonts | Bitmap Fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian Fonts 16×16, 24×24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001) 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions TTF Fonts TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable |
| Barcodes | 1-D Bar Codes China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A, B, C), EAN-8, EAN-13, EAN 8/13 (with 2 & 5 digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5 , Interleaved 2-of-5 (I 2 of 5), Interleaved 2- o-f 5 with Shipping Bearer Bars, ISBT – 128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 & 13 digit, RPS 128, Random Weight, Standard 2 of 5, Telepen, UPC-A, UPC-E, UPC-A and UPC-E with EAN 2 or 5 digit extension, UCC 128, UCC/EAN-128 K-Mart 2-D Bar Codes Aztec code, Code 49,Codablock F , Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417,QR code, TLC 39 |
| Code Pages | Codepage 437, 737,850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, Windows 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode UTF8、UTF16BE、UTF16LE |
| Graphics | Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software |

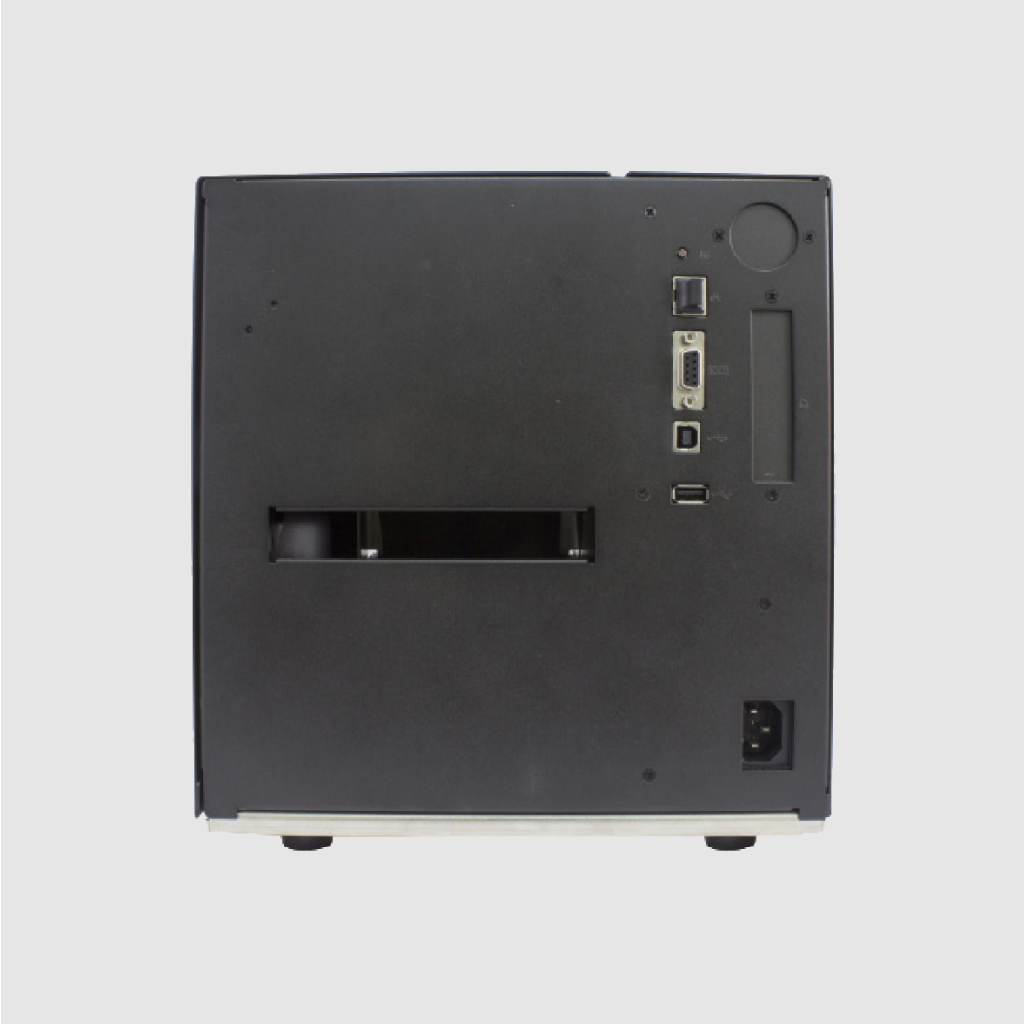

| Interfaces | USB 2.0 (B-Type) Serial port: RS-232 (DB-9) IEEE 802.3 10/100 Base-Tx Ethernet port (RJ-45) USB Host (A-Type) |
| Control Panel | Color TFT LCD with navigation button 1 Power on/standby button with green color LED backlight 1 Calibration button at rear panel 1 Control key : FEED / PAUSE / CANCEL with dual color LED backlight: Ready (Green); Error (Red) |
| Power | Auto Switching 100-240V AC, 50-60Hz |
| Real Time Clock | Standard |
| Environment | Operation temperature 41°F to 104°F (5°C to 40°C) Storage temperature -4°F to 140°F (-20°C to 60°C) |
| Humidity | Operation 20-85%, non-condensing Storage 10-90%, non-condensing |
| Agency Approvals | CE (EMC)、FCC Class B、CB、UL、cUL、CCC |
| Dimension | Length 15.86” (403 mm) Height 10.79” (274 mm) Width 10.24” (260 mm) |
| Weight | Weight 23.81lbs (10.8 Kg), excluding consumables |
| Options | Cutter (Dealer Install) Parallel port adaptor module (Centronic female 36-pin)(Dealer Install) Bluetooth (Dealer Installer) Wireless LAN (IEEE 802.11 b/g/n) (Dealer Install) External label rewinder Label Dispenser (Dealer Install) |
| Note | * Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners. ** Minimum print height and maximum print speed specification compliance can depend on non-standard material variables such as label type, thickness, spacing, liner construction, etc. GoDEX is pleased to test non-standard materials for minimum print height and maximum print speed capability. |
