2Products found
Filter
  • P2x

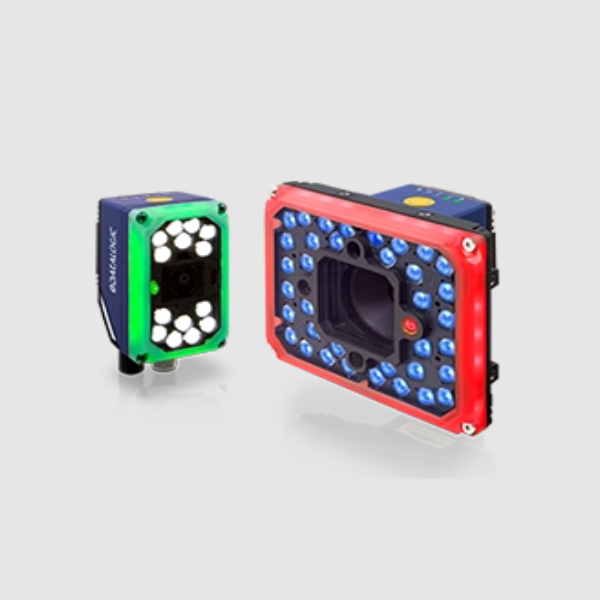

    P2x

    • Imagers: WVGA and 2MP, CMOS mono or color
    • Lens options: Micro-video (6, 8, 12.5 and 17.5mm) or C-Mount
    • Illuminators: Red, Blue, Infrared, White (polarized versions available)
    • Digital I/Os: 2 IN / 3 OUT
    • Connectivity: PROFINET, EtherNet/IP, ModBus, RS232, Ethernet TCP/IP
    • Rotating connectors for straight vs 90° mounting
    • IP67 rated housing
    • Configuration through IMPACT Software including advanced algorithms



    Download Brochure

    Read more

    P2x

  • P3x

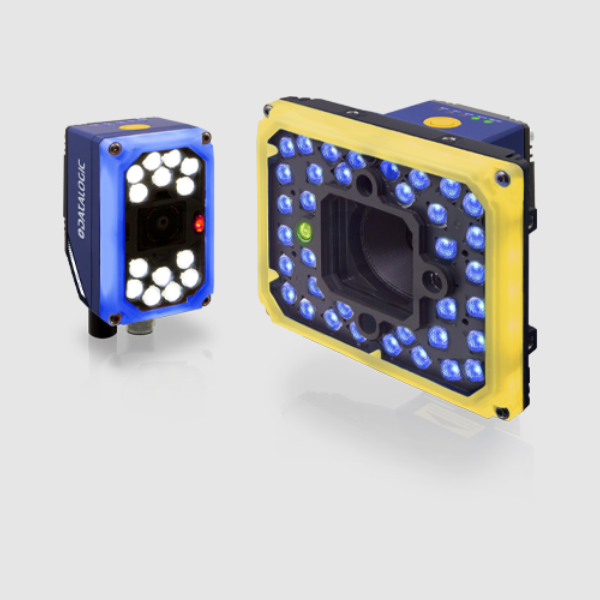

    P3x

    • qHD (960 x 540) , 2MP (1920 x 1080) and 5MP (2560×1920) resolution imager options both available in monochrome and color
    • Field interchangeable lenses, illuminators and filters
    • Two embedded illuminator sizes: 14-LED compact and 36-LED high power both integrating TIR lenses to deliver maximum brightness onto the field of view available in 3 different colors (white, blue and red)
    • Lens options: Micro-video (6, 8, 12.5 and 17.5mm) or C-Mount
    • Innovative 360° software configurable visual feedback
    • Top industrial grade: -10 to 50 °C / 14 to 122 °F operating temperature, IP65/67 rating
    • Powered by IMPACT software suite with 100+ inspection tools
    • Add-on licenses to run even the most advanced Datalogic algorithms

    Download Brochure

    Read more

    P3x
