Product specifications
| Decode Capability | 1D, 2D |
| Form Factor | All-in-One |
| Interface | RS-232, USB |
| Illumination | White LED |
| Dimension | 114×46×94mm |
| Weight | 145g |

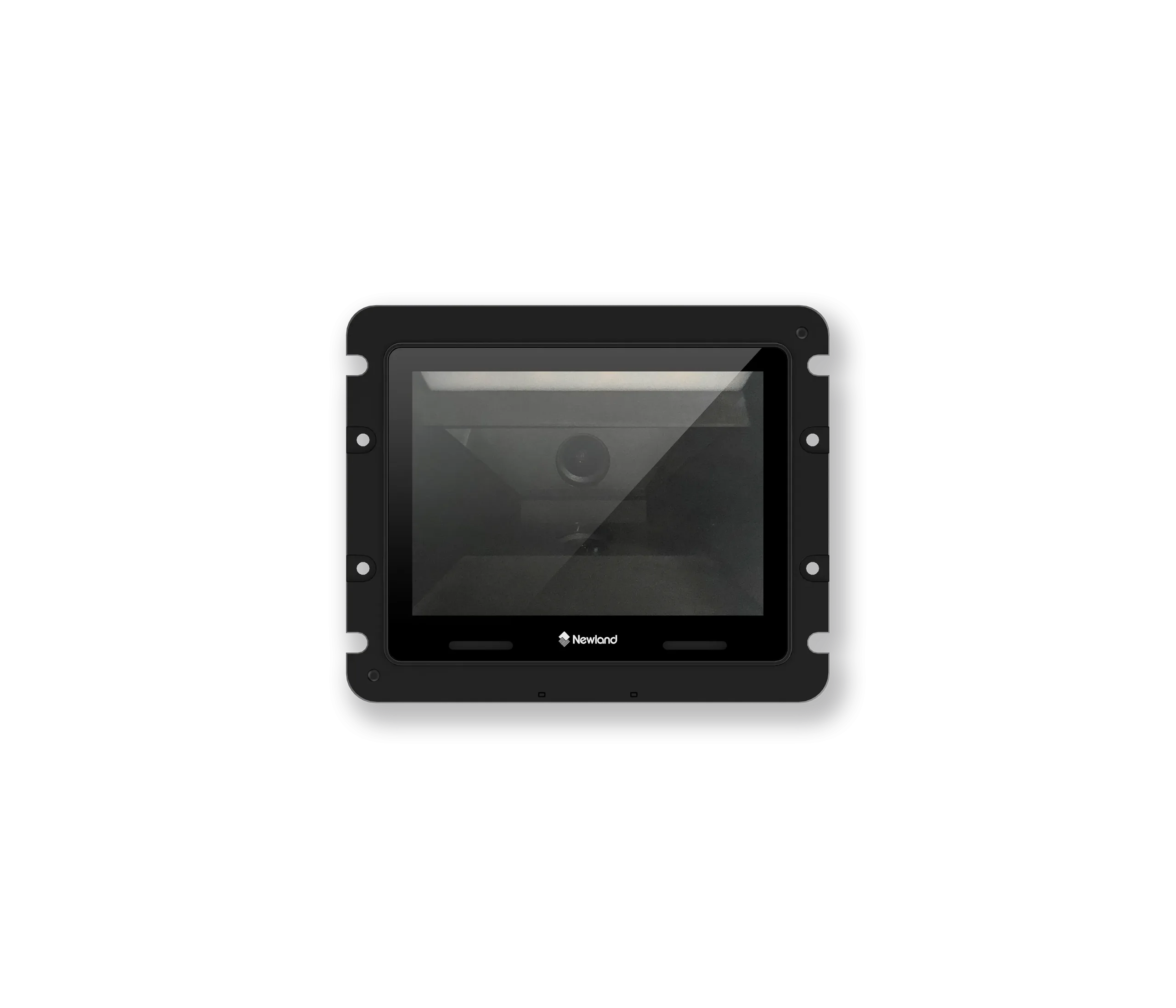

FM60 Fixed Mount
Roll over image to zoom in
High Motion Tolerance
With 2m/s motion tolerance, the scanner can quickly capture moving goods, which greatly enhances efficiency.
Multiple Status indicators
6 kinds of status indicators show current working status of the scanner, including decoding, configuration, communication and abnormal status.
Superior Scanning Performance
Armed with Newland’s UIMG® technology, this scanner can scan 1D and 2D barcodes and delivers stunning performance on decoding the wrinkled, reflective and curved barcodes.
Wide-viewing Angle
Featuring wide-viewing angle, the scanner will conduct quick scanning when goods comes closer to the scan window.
Specifications
|
Performance
|
Image Sensor | 1280 * 800 CMOS | |
| Illumination | 3000K white LED | ||
| Symbologies | 2D: QR Code, PDF417, Data Matrix, Aztec 1D: Code 11, Code 128, Code 39, GS1-128（UCC/EAN-128）, AIM 128, ISBT 128, Codabar, Code 93, UPC-A/UPC-E, Coupon, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2/5, Matrix 2/5, Industrial 2/5, ITF-14, ITF-6, Standard 2/5, China Post 25, MSI-Plessey, Plessey, GS1 Databar, GS1 Composite, Databar（RSS） |
||
| Resolution | ≥4mil (1D) | ||
| Typical Depth of Field | EAN-13 QR Code |
0mm-150mm (13mil) 0mm-100mm (15mil) |
|
| Scan Angle | Roll: 360°, Pitch: ±55°, Skew: ±50° | ||
| Min. Symbol Contrast | ≥25% (Code 128 10mil) | ||
| Scan Mode | Advanced sense mode | ||
| Motion Tolerance | ＞2m/s | ||
| Field of View | Horizontal 65.6°, Vertical 44.6° |
|
Physical
|
Dimensions (L×W×H) | 114×46×94mm (max.) | |
| Weight | 145g | ||
| Notification | Beep, LED indicator | ||
| Operating Voltage | 5 VDC±5% | ||
| Current | Operating Idle |
275mA (typical), 365mA (max.) 228mA |
|
| Interfaces | RS-232, USB |
|
Environmental
|
Operating Temperature | -20°C to 50°C (-4°F to 122°F) | |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) | ||
| Humidity | 5% to 95% (non-condensing) | ||
| ESD | ±15 kV (air discharge), ±8 kV (direct discharge) | ||
| Sealing | IP52 |
|
Certifications
|
Certifications | FCC Part 15 Class B, CE EMC Class B, RoHS |
