Product specifications
| Decode Capability | 1D |
| Dimension | 163.0×68.4×58.5mm |
| Sealing | |
| Connectivity | Corded |
| Weight | 130g |
| Interface | USB |

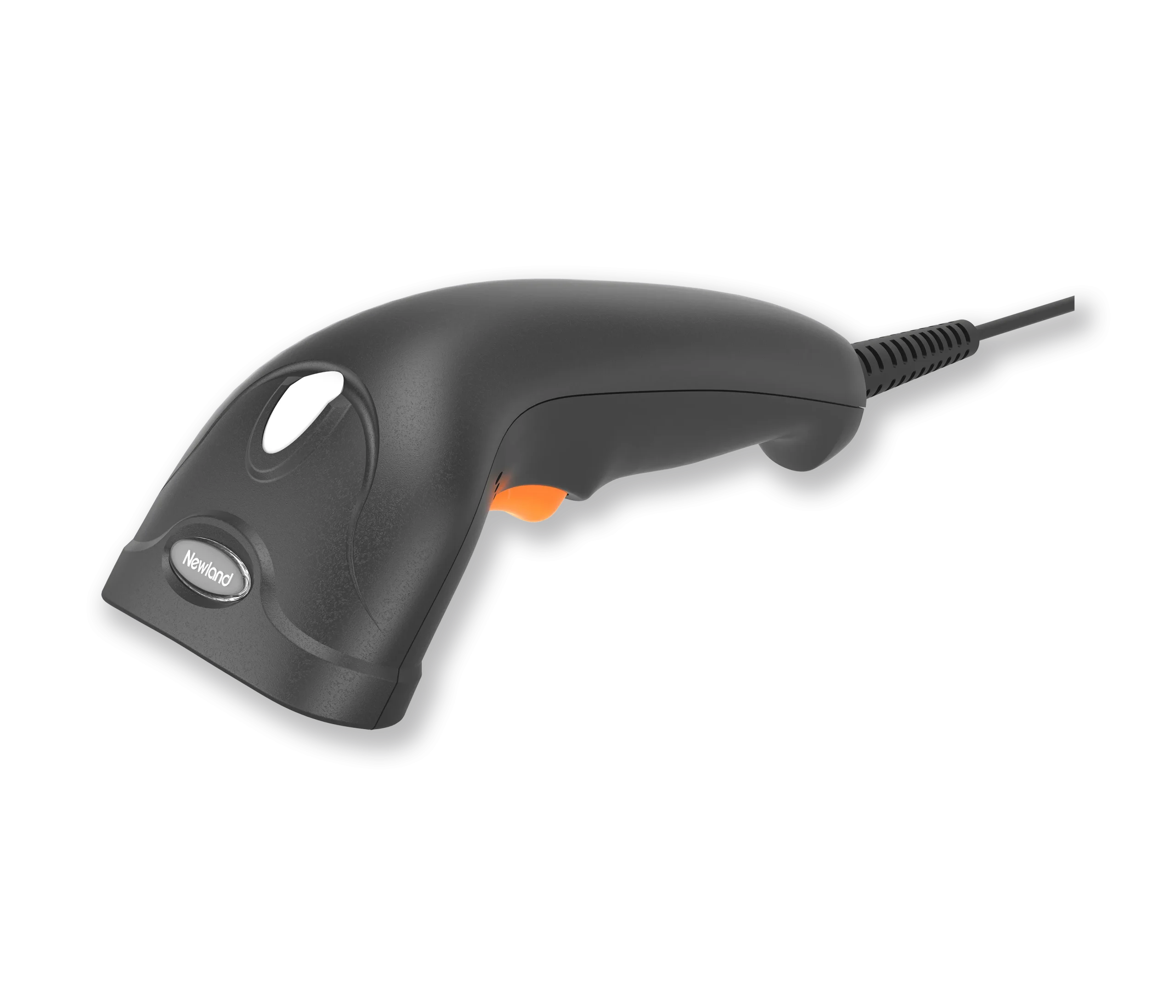

HR1250 Handheld Scanner
Roll over image to zoom in
Cost-effective Solution
HR1250 delivers aggressive scanning capabilities and excellent user experiences at an attractive price.
Ergonomic Lightweight Design
This ergonomic lightweight scanner fits comfortably in any user’s hands to reduce the fatigue of long-time operation, ideally suited for scan-intensive applications.
Snappy Scanning Performance
HR1250 offers an impressive read rate of up to 300 scans per second, helping boost productivity and profitability.
Specifications
|
Performance
|
Image Sensor | Linear imager | |
| Illumination | Red LED (610nm~640nm) | ||
| Symbologies | 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey. | ||
| Resolution | ≥4mil | ||
| Typical Depth of Field | EAN-13: 50mm-655mm (13mil) Code 39: 55mm-165mm (5mil) Code 128: 40mm-495mm (10mil) |
||
| Scan Angle | Pitch: ±60°; Roll: ±30°; Skew: ±60° | ||
| Min Symbol Contrast | 30% | ||
|
Physical
|
Interface | USB | |
| Input Voltage | DC5V | ||
| Current | Operating: 55mA±5mA Standby: 21mA±2mA Maximum: <120mA |
||
| Dimensions(L×W×H) | 163.0×68.4×58.5mm | ||
| Weight | 130g (including USB cable) | ||
| Notification | Beep, LED | ||
|
Environmental
|
Operating Temperature | -20°C to 60°C (-4°F to 140°F) | |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) | ||
| Humidity | 5%~95% (non-condensing) | ||
| ESD | ±8 KV (contact discharge); ±10 KV (air discharge) | ||
|
Certifications
|
Certificates & Protection | FCC Part15 Class B, CE EMC Class B, RoHS | |
