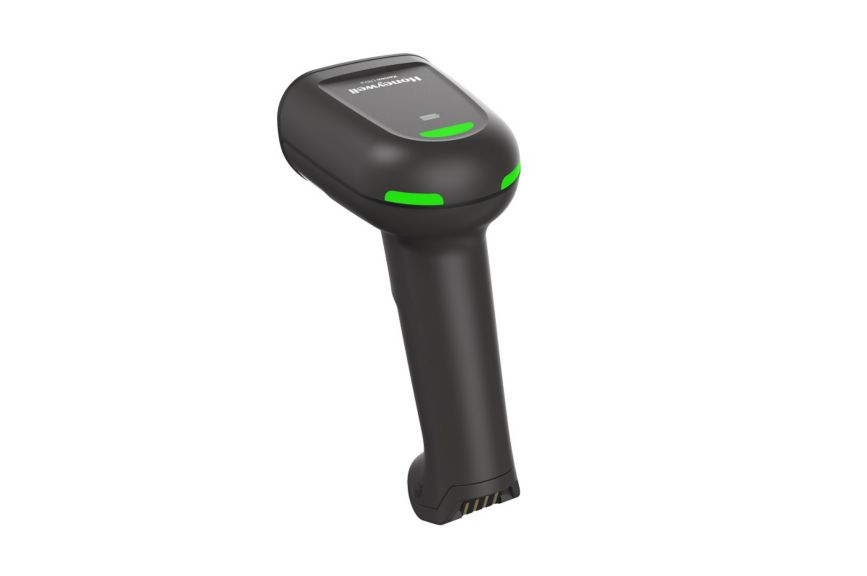

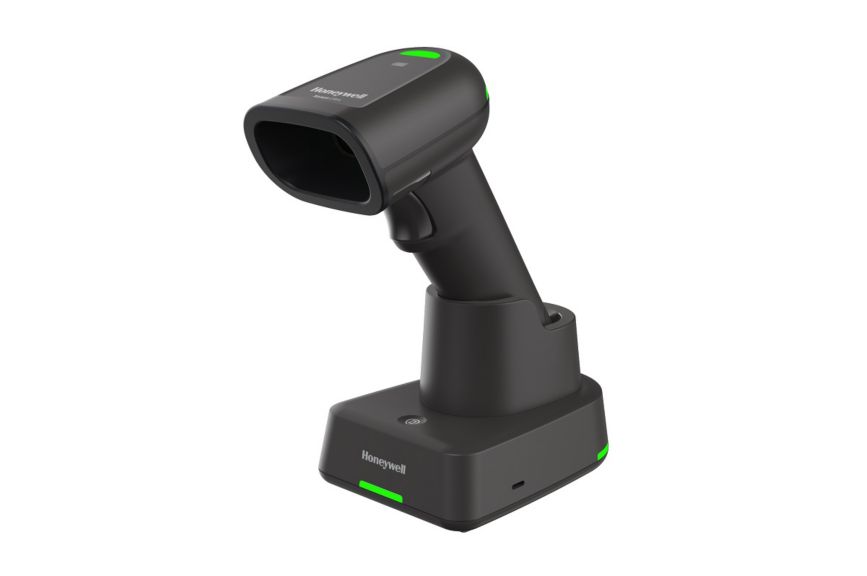

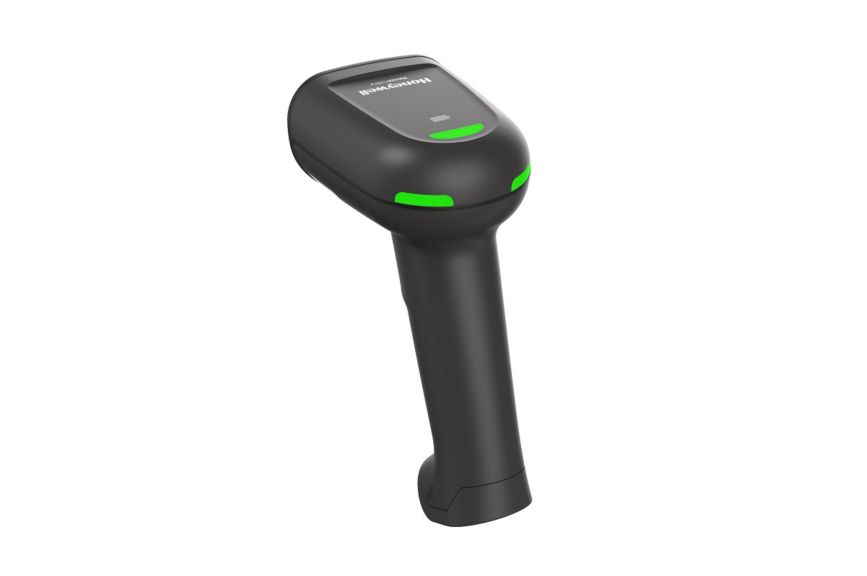

Xenon Ultra 1962 Scanner

Premium Cordless Bluetooth Handheld Scanner for Retail and Light Manufacturing Applications.

Barcode scanning has become a critical workflow throughout a variety of industries – including light industrial and retail – making it a key ingredient in achieving streamlined operations. Deploying a reliable scanning solution can help an enterprise feel confident in meeting the increased demands and heightened expectations of their customers and achieve lasting success.

The Xenon Ultra family of handheld scanners is a premium evolution of the widely known legacy Xenon and Xenon XP general purpose scanners, taking our industry-leading scan performance and reliability one step further.

Additional information

Scanning Technology

Imager, Laser, Linear

Bluetooth

Bluetooth

Specification

FEATURES

  • Features
    • In addition to a green-dot aimer to visibly enhance targeting and improve scan accuracy, the newly engineered and innovative scan platform empowers snappy scanning operations.
    • Object Detection (IR): Avoid false scanner wake ups to lower/prevent patient annoyance or disturbances
    • Optimized Illumination
    • Redesigned housing enables full product gasketing reducing the chance of water and dust ingress. Improved optional magnetic retention enables scanner to stay securely connected to the CCB if deployed in kinetic conditions
    • The Xenon Ultra 1962 battery and battery-free is availble in a premium contactless version, reducing the number of failed devices due to corrosion.
    • The Xenon Ultra 1962 scanner can accept a lithium-ion battery or a battery-free supercapacitor, allowing enterprises to have mixed device pools and flexibility in their fleets.

DIMENSIONS

  • Overall Dimensions
    • Desktop/Wall Mount Base: 211.3mm x 74.2mm x 77.7mm
    • Presentation Base: 82.9mm x 90.4mm x 121.6mm
    • Scanner: 108.2mm x 70.4mm x 160.2mm

SCANNING SPECIFICATIONS

  • Depth of Field
    • Refer to the datasheet or users’ manual for full depth of field specifications
  • Decode Capability
    • 1D/2D
  • Scanning Range
    • Standard Range (SR) and High Density (HD) Capabilites. Refer to datasheet or Users’ Manual for further details
  • Number of Scans
    • Battery-Free Super Capacitor: 450
    • Standard Battery: 80,000
  • Motion Tolerance
    • For 13 mil UPC at optimal focus 4 meters/second
  • Brightness
    • 0 – 100,000 Lux
  • Scan Pattern
    • Area Imager

NETWORK

  • Bluetooth Specifications
    • BLE availble
    • Class 1: 100m line of sight (default), programmable to Class 2: 10m line of sight
    • Radio/Range: 2.4GHz Bluetooth radio v4.2 with Adaptive Frequency Hopping.
  • Bluetooth
    • Yes

HARDWARE

  • Wireless
    • Yes
  • Host System Interface
    • Keyboard Wedge
    • RS-232
    • Supports USB BC1.2 charge ports
    • USB
  • Aimer Type
    • Green Dot LED

ELECTRICAL

  • Battery Types
    • Battery-Free Super Capacitor
    • Lithium Ion

ENVIRONMENTAL

  • Storage Temperature Range
    • -40°C to 70°C (-40°F to 158°F)
  • Operating Humidity
    • 0 to 95% relative humidity, non-condensing

STANDARDS & APPROVALS

  • Protection Ratings
    • Environmental Sealing (CCB): IP41
    • Environmental Sealing (Scanner): IP52
  • Drop Specifications
    • Engineered to withstand 50 1.8 m drops to concrete across operating temp range
  • Tumble Specifications
    • Mil Spec Drop: 8′
    • Tumble: 2,000 at 0.5m (1.6ft)

OTHERS

  • Application
    • Assembly Line
    • Component Tracking
    • Electronic Manufacturing and Retail
    • High and low throughput POS
    • In-store inventory
    • Self-Checkout
  • Form Factor
    • Gun Shape
  • Operating Power
    • Operating Power (Charging) Bases: 2.5W (500 mA @ 5V DC) Standard USB 10W (2A @ 5V DC) – when utilizing power adapter
  • Input Voltage
    • 4.4V DC – 5.5V DC
  • Battery Capacity
    • 3300 mAh Li-Ion
  • Operating Temperature
    • Charging: 5°C to 35°C (41°F to 95°F)
    • Non-Charging: 0°C to 50°C (32°F to 122°F)
    • Scanner: 0°C to 50°C (32°F to 122°F)
  • Warranty Duration
    • Lithium-ion Battery Pack: One year
    • Scanner: Three-year factory warranty
    • Supercapacitor: Five-year factory warranty
