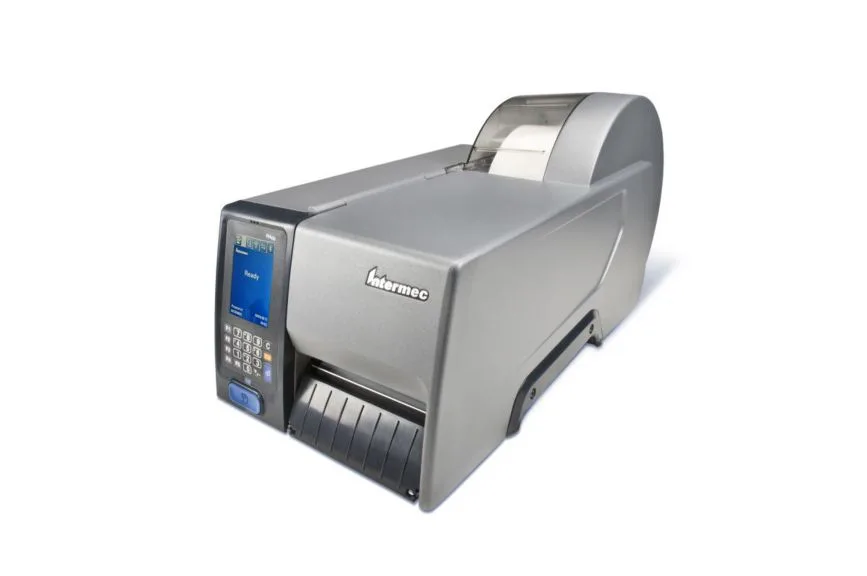

PM43C Industrial Printer

Programmable PM series smart printers offer you reliable performance for uptime assurance, quick deployment and integration, and the fastest throughput in their class –: no PC required. The PM series are available in a variety of enclosure sizes and door types to fit your exact application.



  • Fast printing speed of up to 12 inches per second.
  • Run sophisticated apps right in the printer with industry-leading Honeywell Smart Printing supporting C#.
  • Comprehensive printer command language support, including ZSim2, makes upgrading easy.
  • Large color, multilingual, tamperproof touchscreen or icon user interface.
  • Ready for the future, with IPv6 support, plus CCX and Wi-Fi certifications.

The PM series Mid-Range Industrial Printers deliver proven reliability, fast drop-in deployment and integration, and advanced connectivity to maximize your uptime. They&apos:re ideal for applications in distribution centers, warehouses, manufacturing operations, and transportation centers. The PM series was designed for easy integration and fast deployment. Minimize workforce training and device support needs with intuitive features like a vibrant color touchscreen or intuitive icon user interface.

Notifications are displayed right on screen, and the interface can be locked down to eliminate tampering. And with the broadest connectivity options in their class –: including Wi-Fi and Cisco CCX certifications, plus additional Bluetooth®: connectivity –: PM series quickly interface with virtually any IPv4 or IPv6 network. PM printers offer outstanding performance in harsh environments thanks to a rugged metal enclosure and the top print speed in their class at 304 mm/s (12 ips). Beyond the productivity of speed, PM printers also enable you to work smarter by reducing labeling errors and increasing process efficiency. Plus, in-printer apps can directly control other devices such as scanners, scales, keyboard and other peripherals –: without the need for an attached computer.

Specifications

FEATURES

Compatible Drivers

  • CUPS Driver for Linux
  • InterDriver Windows
  • Intermec Certified Device Types for SAP

Features

  • Easy Deployment

Door Options

  • Dome Door
  • Short Door

Application

  • Distribution
  • Manufacturing
  • Transportation

Compatible Software

  • PrintSet
  • SmartSystems
  • Wavelink Avalanche

PRINTING SPECIFICATIONS

Print Speeds

  • 12 ips

Resolutions

  • 203 dpi
  • 300 dpi

Print Method

  • Thermal Transfer

SOFTWARE & FIRMWARE

Downloadable Font Type

  • WTLE

Printer Command Language

  • C#
  • DP
  • DPL
  • IPL
  • XML
  • ZPL-II

Image File Format

  • BMP
  • GIF
  • PCX
  • PNG

MEDIA

Printer Media Type

  • Label
  • RFID
  • Ribbon
  • Tag

NETWORK

Wireless Communication

  • Bluetooth
  • WiFi

RFID Specifications

  • RFID

MEMORY & DATA

Memory

  • 128 MB Flash/128 MB RAM

ELECTRICAL

Operating Frequency

  • 45 – 65 Hz

Operating Voltage

  • 100 – 240 V AC

ENVIRONMENTAL

Operating Temperature

  • 41 – 104 °F
  • 5 – 40 °C

Operating Humidity

  • 20 – 80 %

ERP

Brand

  • Honeywell

Resources

Data Sheet

PM43 / PM43c / PM23c Industrial Printers Data Sheet (216.04 KB )

Manuals and Guides

PM43/PM43c Rotation Hanger Installation Instructions (1.88 MB)

User Guide: Honeywell Smart Printing Software Developer Kit (SDK-SP-EN-UG-01 REV E) (357.19 KB )

PM23c Airline Media Guides Installation Instructions (1.58 MB)

IDL Smart Printing Resource Kit Developer Guide (1.09 MB )

DSim Command Reference (P/N 937-021-004) (3.02 MB)

PM43/PM43c RFID Module Installation Instructions (2.36 MB)

Command Reference Guide: Fingerprint (FP-EN-CR Rev B) (4.9 MB)

PM23c Label Dispenser Instructions (933.62 KB)

PM43/PM43c Linerless Roller Installation Instructions (3.48 MB)

PM23c Printer Mounting Template (134.62 KB )

PM43/PM43c 3-Inch Core Instructions (513.57 KB )

Command Reference User Guide: IPL (IPL-EN-CR Rev D) (1.74 MB )

PM23c, PM43, PM43c Dual USB Interface Board Installation Instructions (1.52 MB )

PM Series Parallel Port Board Installation Instructions (1.91 MB)

PM43 Full Roll Rewinder Installation Instructions (3.46 MB)

PM43c Airline Extended Tray Instructions (1.76 MB)

PM23c RFID Kit Installation Instructions (3.15 MB)

PM23c Rotation Hanger Installation Instructions (1.76 MB )

Command Reference User Guide: ZSIM (ZSIM-EN-CR-01 Rev F) (706.11 KB)

User Guide: Printer Network And Security (ALLSKU-PR-EN-SG-01 Rev F) (303.43 KB )

PM23c 3-Inch (7.62-Cm) Core Instructions (804.09 KB)

PM43 Media Cover Lock Instructions(497.96 KB )

Command Reference User Guide: DPL (DPL-EN-CR Rev F) (901.44 KB)

PM43 Mid-Range Printer Quick Start Guide (1.99 MB)

PM43 Printer Mounting Template (125.48 KB)

PM23c, PM43, And PM43c Mid-Range Printer User Manual (5.91 MB)

Fingerprint Command Reference (P/N 937-023-003) (4.96 MB)

PM43c Printer Mounting Template (102.86 KB)

Important RC12ABGN Radio Information! (933-350-004 Rev A) (1005.88 KB)

PM23c, PM43, PM43c DUART Interface Board Installation Instructions (1.27 MB)

PM23c Front Access Door Instructions (732.2 KB)

PM23c And PM43c Mid-Range Printer Quick Start Guide (P/N 930-273-002) (1.14 MB)

PM42, PM43, & PM43c Collapsible Core Instructions (1.49 MB )

PM23c Batch Plate Instructions (621.53 KB )

PM43c And PD43c Airline Ticket Shelf Instructions (745.16 KB )

PM23c, PM43, PM43c UART+Industrial Interface Board Installation Instructions (1.27 MB )

PM23c, PM43, PM43c Wi-Fi + Bluetooth Module Installation Instructions (980.24 KB )

PM43/PM43c Label Dispenser Instructions (1.92 MB )

Important INRD01u/INRD02u Radio Information! (933-272-005) (970.14 KB )

PM23c Airline Front Access Door Instructions (1.63 MB )

Fingerprint Developer’s Guide (934-067-001) (4.78 MB )

PM43 Cutter Instructions (2.16 MB )

PM43c Dome Media Cover Instructions (1.29 MB )

PM23c 1-Inch (2.54-Cm) Hanger Instructions (641.44 KB )

PM43c Short Media Cover Instructions (1.27 MB )
