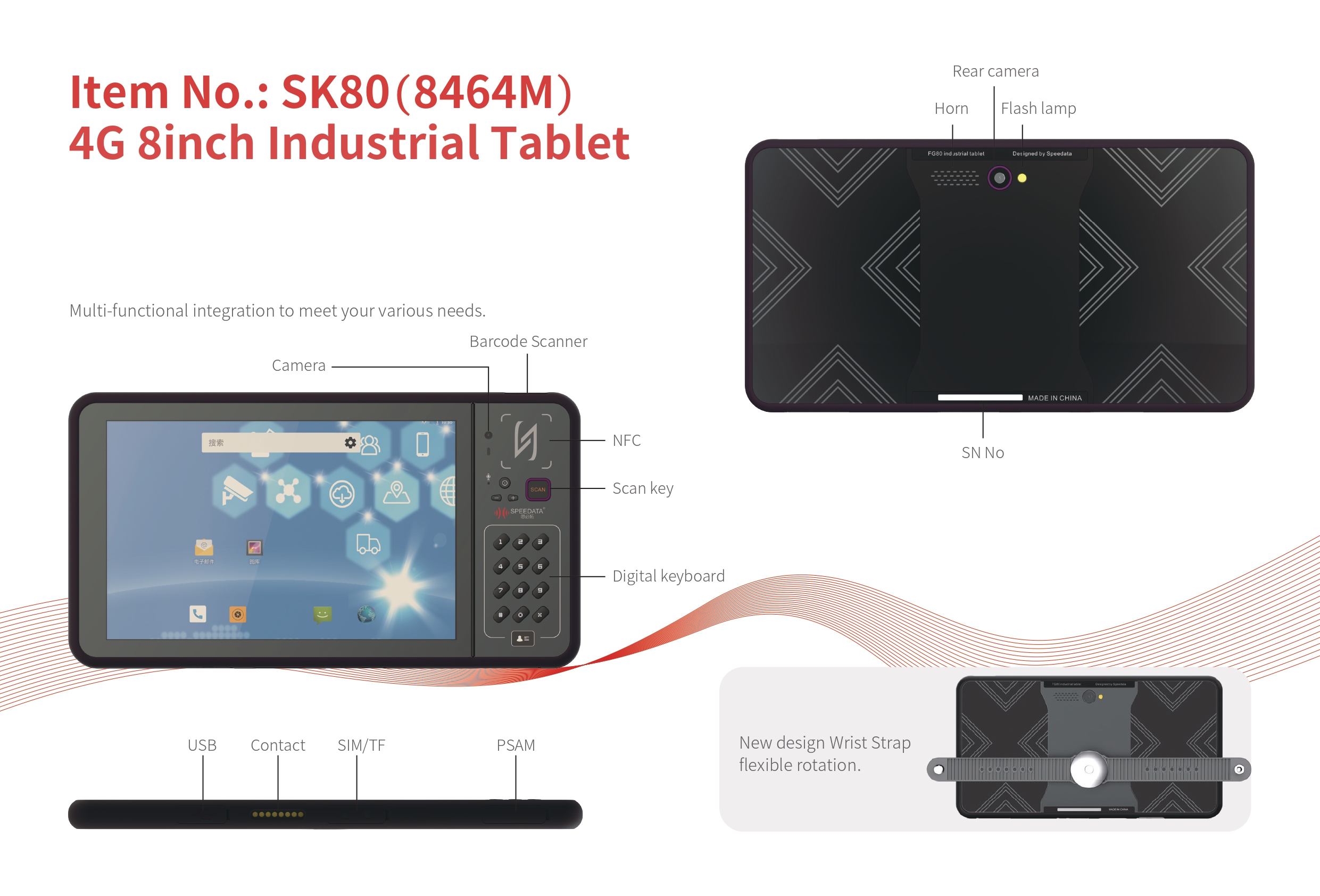

SK80(8464M) 4G 8inch Industrial Tablet
Roll over image to zoom in

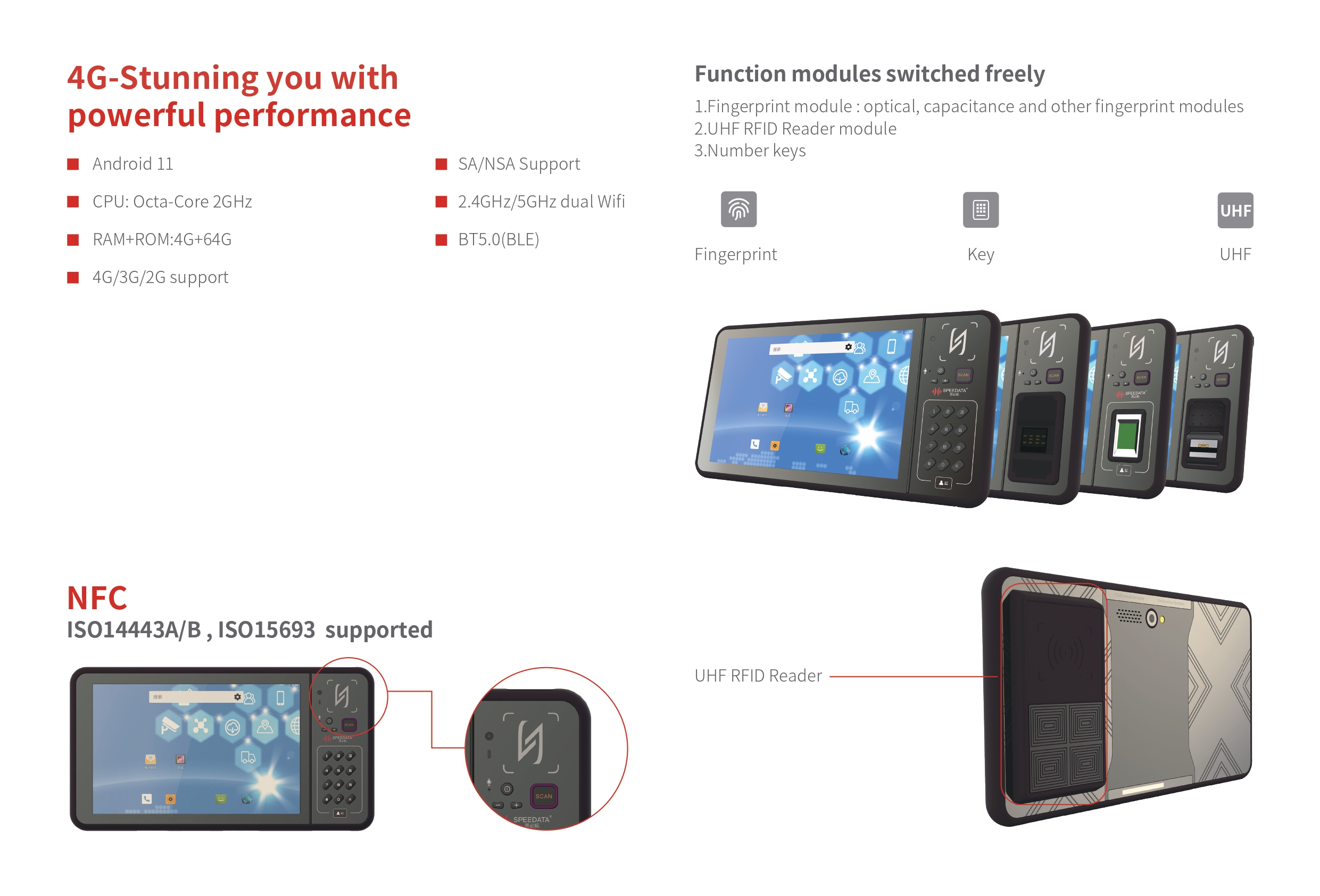

4G-Stunning you with powerful performance
- Android 11
- CPU: Octa-Core 2GHz
- RAM+ROM:4G+64G
- 4G/3G/2G support
- SA/NSA Support
- 2.4GHz/5GHz dual Wifi
- BT5.0(BLE)

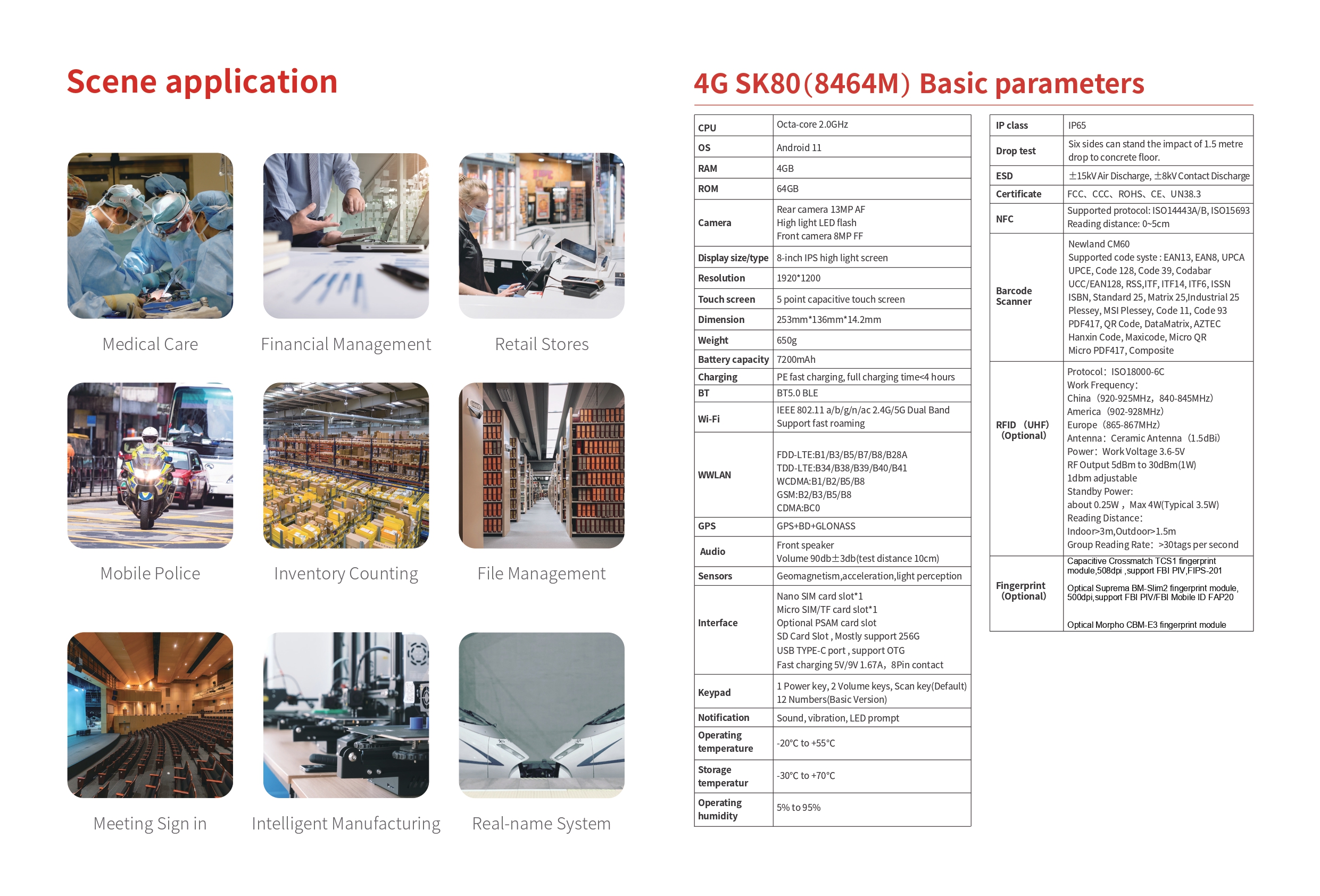

Specifications
| CPU | Octa-core 2.0GHz |
|---|---|
| OS | Android 11 |
| RAM | 4GB |
| ROM | 64GB |
| Camera | Rear camera 13MP AF High light LED flash Front camera 8MP FF |
| Display size/type | 8-inch IPS high light screen |
| Resolution | 1920*1200 |
| Touch screen | 5 point capacitive touch screen |
| Dimension | 253mm*136mm*14.2mm |
| Weight | 650g |

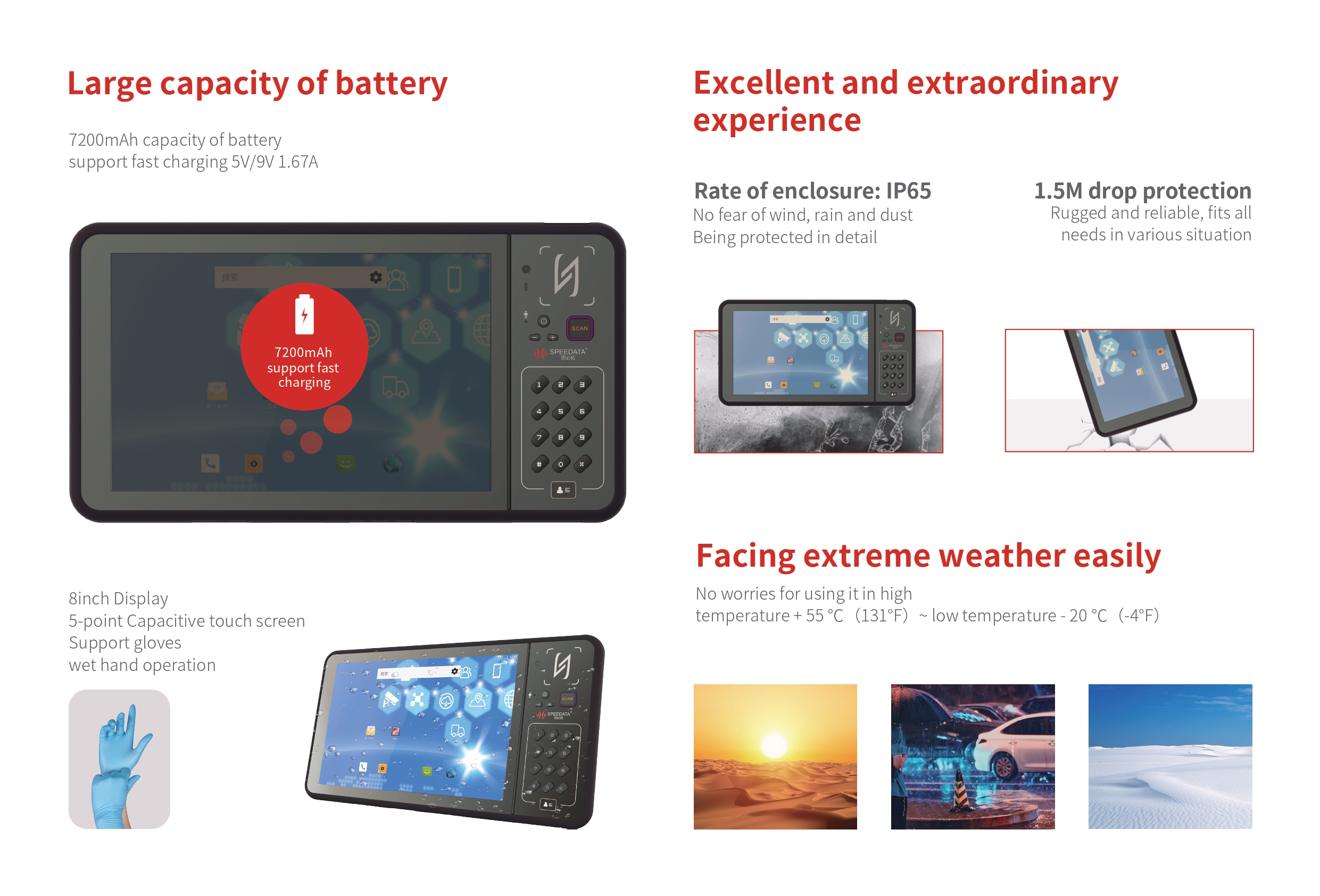

| Battery capacity | 7200mAh |
| Charging | PE fast charging, full charging time<4 hours |
| BT | BT5.0 BLE |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac 2.4G/5G Dual Band Support fast roaming |
| WWLAN | FDD-LTE:B1/B3/B5/B7/B8/B28A TDD-LTE:B34/B38/B39/B40/B41 WCDMA:B1/B2/B5/B8 GSM:B2/B3/B5/B8 CDMA:BC0 |
| GPS | GPS+BD+GLONASS |
| Audio | Front speaker Volume 90db±3db(test distance 10cm) |
| Sensors | Geomagnetism,acceleration,light perception |
| Interface | Nano SIM card slot*1 Micro SIM/TF card slot*1 Optional PSAM card slot SD Card Slot , Mostly support 256G USB TYPE-C port , support OTG Fast charging 5V/9V 1.67A，8Pin contact |
| Keypad | 1 Power key, 2 Volume keys, Scan key(Default) 12 Numbers(Basic Version) |
| Notification | Sound, vibration, LED prompt |
| Operating temperature | -20℃ to +55℃ |
| Storage temperatur | -30℃ to +70℃ |
| Operating humidity | 5% to 95% |
| IP class | IP65 |
| Drop test | Six sides can stand the impact of 1.5 metre drop to concrete floor. |
| ESD | ±15kV Air Discharge, ±8kV Contact Discharge |
| Certificate | FCC、CCC、ROHS、CE、UN38.3 |
| NFC | Supported protocol: ISO14443A/B, ISO15693
Reading distance: 0~5cm |
| Barcode Scanner | Newland CM60 Supported code syste : EAN13, EAN8, UPCA UPCE, Code 128, Code 39, Codabar UCC/EAN128, RSS,ITF, ITF14, ITF6, ISSN ISBN, Standard 25, Matrix 25,Industrial 25 Plessey, MSI Plessey, Code 11, Code 93 PDF417, QR Code, DataMatrix, AZTEC Hanxin Code, Maxicode, Micro QR Micro PDF417, Composite |
| RFID（UHF) (Optional） | Protocol：ISO18000-6C Work Frequency： China（920-925MHz，840-845MHz） America（902-928MHz） Europe（865-867MHz） Antenna：Ceramic Antenna（1.5dBi） Power：Work Voltage 3.6-5V RF Output 5dBm to 30dBm(1W) 1dbm adjustable Standby Power: about 0.25W ，Max 4W(Typical 3.5W) Reading Distance： Indoor>3m,Outdoor>1.5m Group Reading Rate：>30tags per second |
| Fingerprint（Optional） | Capacitive Crossmatch TCS1 fingerprint module,508dpi ,support FBI PIV,FIPS-201 Optical Suprema BM-Slim2 fingerprint module, 500dpi,support FBI PIV/FBI Mobile ID FAP20Optical Morpho CBM-E3 fingerprint module |
