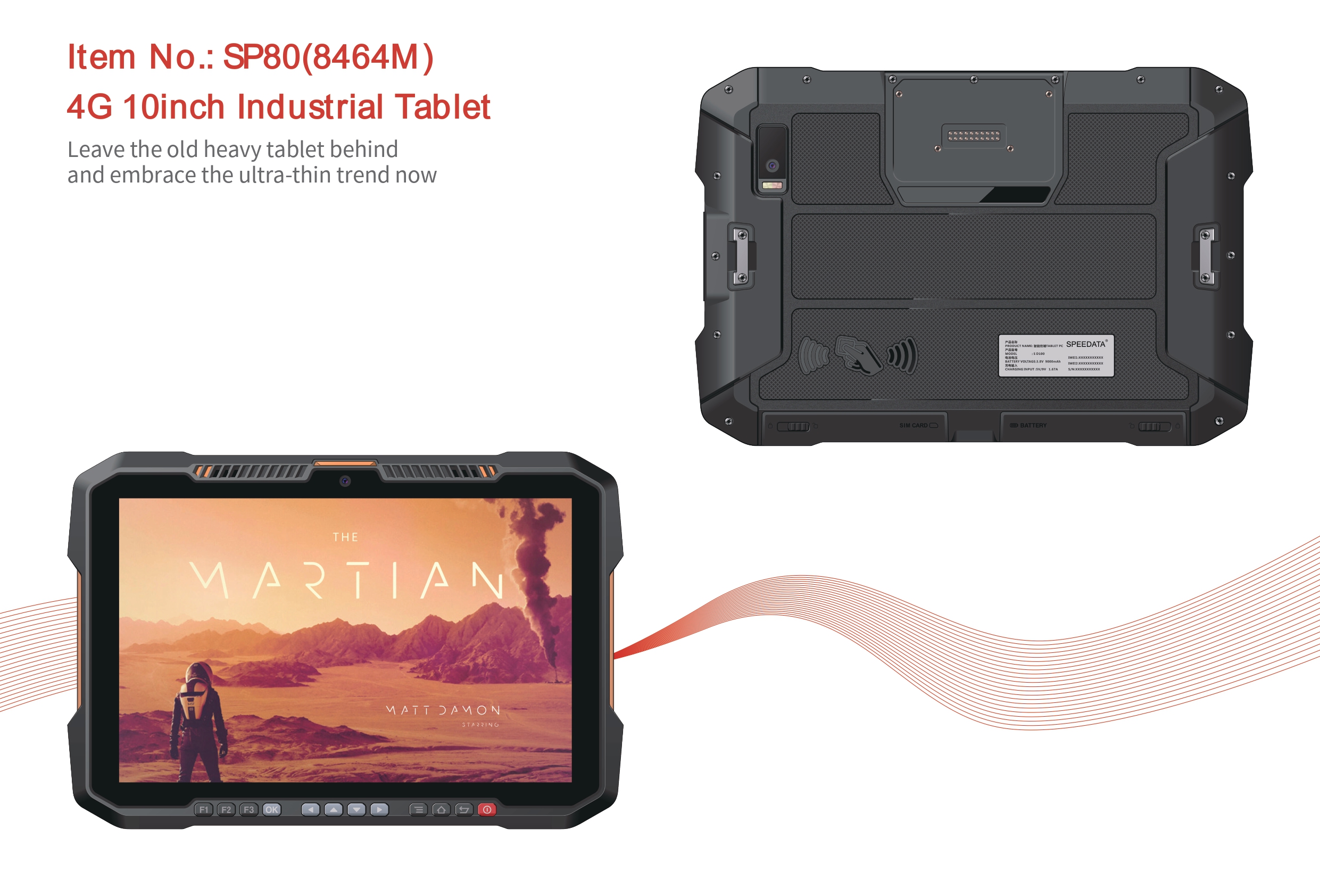

SP80(8464M) 4G 10inch Industrial Tablet
Roll over image to zoom in

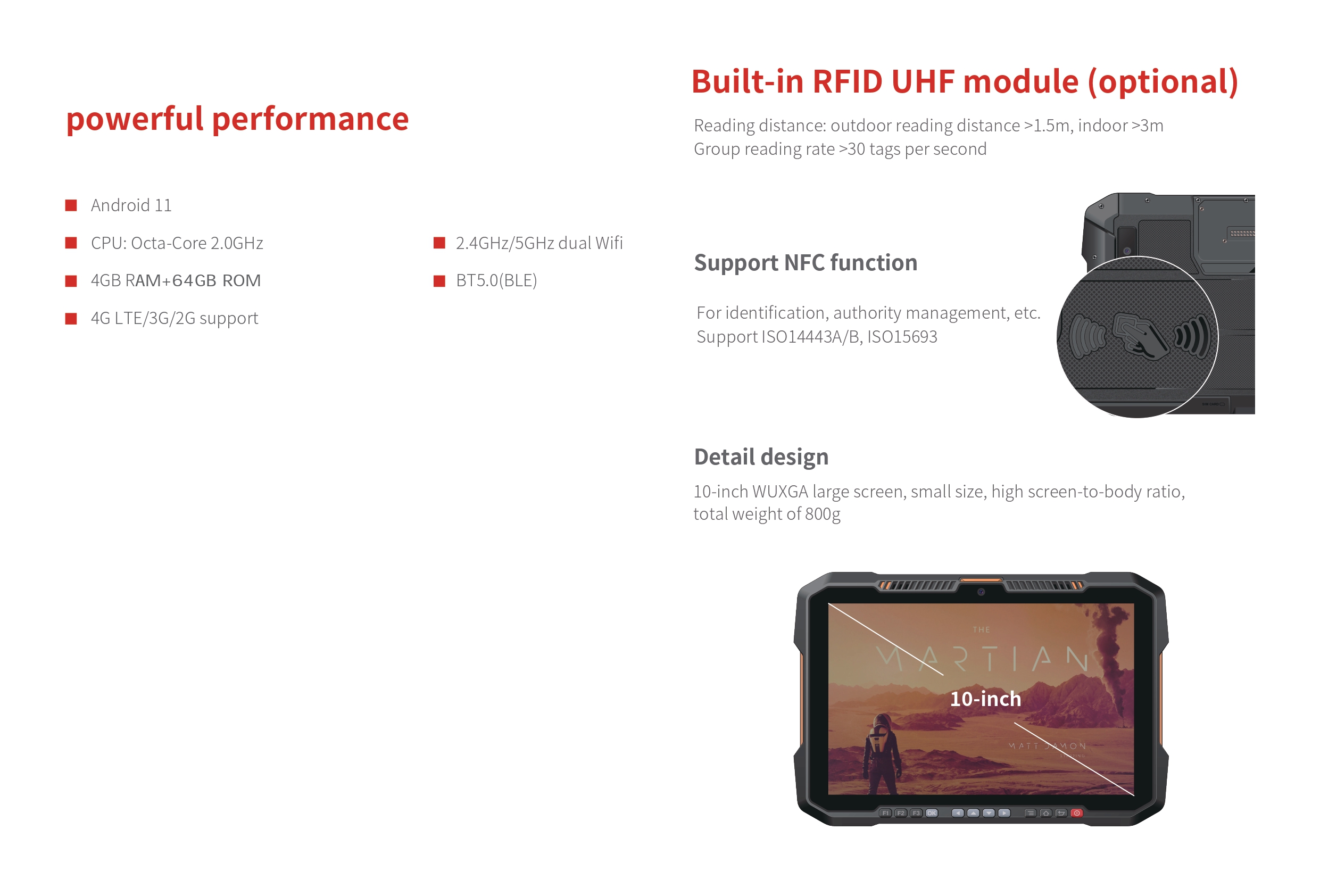

powerful performance
- Android 11
- CPU: Octa-Core 2.0GHz
- 4GB RAM+64GB ROM
- 4G LTE/3G/2G support
- 2.4GHz/5GHz dual Wifi
- BT5.0(BLE)

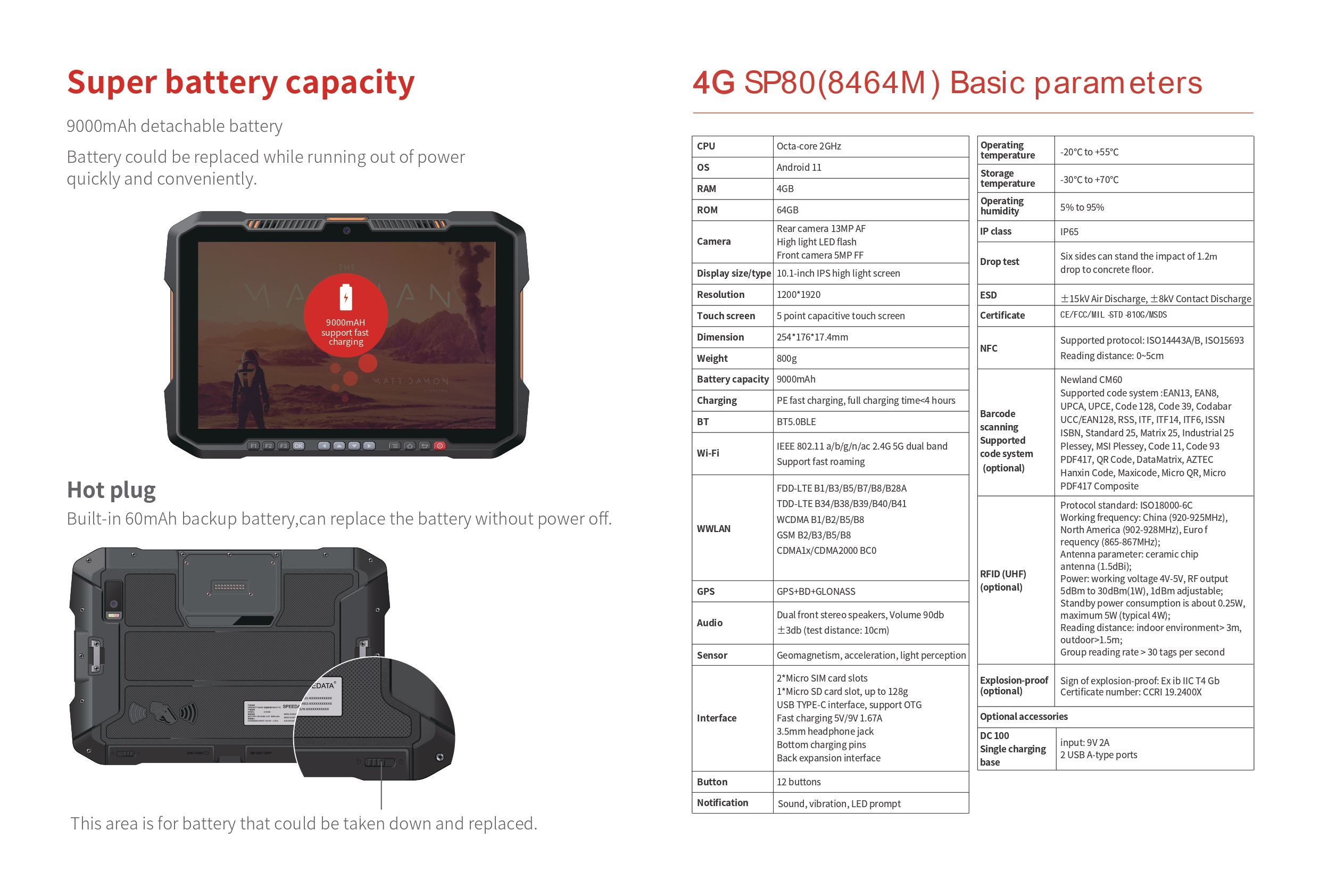

Specifications
| CPU | Octa-core 2GHz |
|---|---|
| OS | Android 11 |
| RAM | 4GB |
| ROM | 64GB |
| Camera | Rear camera 13MP AF High light LED flash Front camera 5MP FF |
| Display size/type | 10.1-inch IPS high light screen |
| Resolution | 1200*1920 |
| Touch screen | 5 point capacitive touch screen |
| Dimension | 254*176*17.4mm |
| Weight | 800g |
| Battery capacity | 9000mAh |
| Charging | PE fast charging, full charging time<4 hours |
| BT | BT5.0 BLE |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac 2.4G 5G Dual Band Support fast roaming |
| WWLAN | FDD-LTE B1/B3/B5/B7/B8/B28A TDD-LTE B34/B38/B39/B40/B41 WCDMA B1/B2/B5/B8< GSM B2/B3/B5/B8< CDMA1x/CDMA2000 BC0 |
| GPS | GPS+BD+GLONASS |
| Audio | Dual front stereo speakers, Volume 90db ±3db (test distance: 10cm) |
| Sensors | Geomagnetism,acceleration,light perception |
| Interface | 2*Micro SIM card slots 1*Micro SD card slot, up to 128g USB TYPE-C interface, support OTG Fast charging 5V/9V 1.67A 3.5mm headphone jack Bottom charging pins Back expansion interface |
| Keypad | 12 Buttons |
| Notification | Sound, vibration, LED prompt |
| Operating temperature | -20℃ to +55℃ |
| Storage temperatur | -30℃ to +70℃ |
| Operating humidity | 5% to 95% |
| IP class | IP65 |
| Drop test | Six sides can stand the impact of 1.2metre drop to concrete floor. |
| ESD | ±15kV Air Discharge, ±8kV Contact Discharge |
| Certificate | CE/FCC/MIL-STD-810G/MSDS |
| NFC | Supported protocol: ISO14443A/B, ISO15693
Reading distance: 0~5cm |
| Barcode Scanner | Newland CM60 Supported code syste : EAN13, EAN8, UPCA UPCE, Code 128, Code 39, Codabar UCC/EAN128, RSS,ITF, ITF14, ITF6, ISSN ISBN, Standard 25, Matrix 25,Industrial 25 Plessey, MSI Plessey, Code 11, Code 93 PDF417, QR Code, DataMatrix, AZTEC Hanxin Code, Maxicode, Micro QR Micro PDF417, Composite |
| RFID（UHF) (Optional） | Protocol standard: ISO18000-6C Working frequency: China (920-925MHz), North America (902-928MHz), Euro f requency (865-867MHz); Antenna parameter: ceramic chip antenna (1.5dBi); Power: working voltage 4V-5V, RF output 5dBm to 30dBm(1W), 1dBm adjustable; Standby power consumption is about 0.25W, maximum 5W (typical 4W); Reading distance: indoor environment> 3m, outdoor>1.5m; Group reading rate > 30 tags per second |
| Explosion-proof (optional) | Sign of explosion-proof: Ex ib IIC T4 Gb Certificate number: CCRI 19.2400X |
| Optional accessories | |
| DC 100 Single charging base |
