Various dimension inspections are necessary after forming flat wires, including measuring the width of the coil ends. Using a high-resolution camera ensures tighter tolerances, which prevents improper stator insertions downstream.

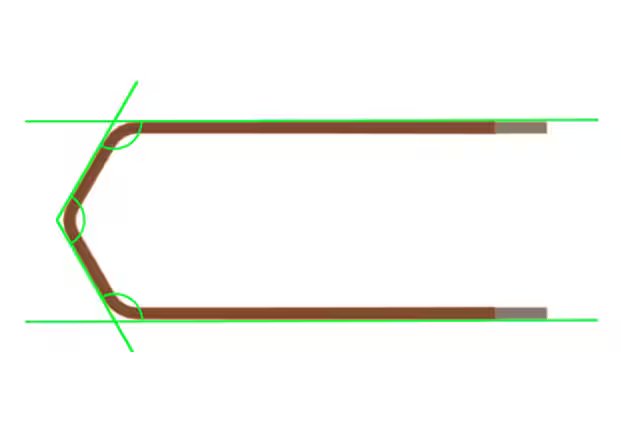

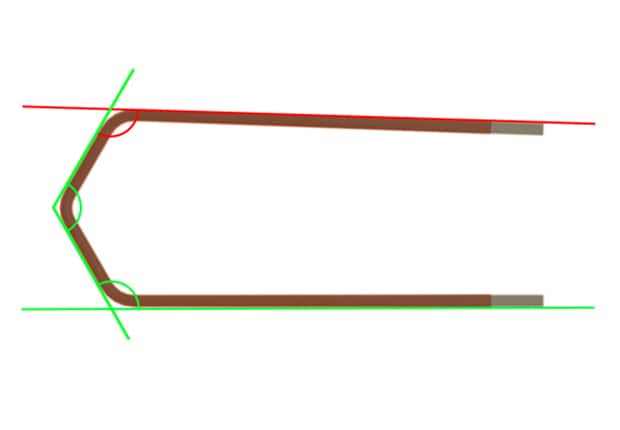

U-pin dimension inspection
